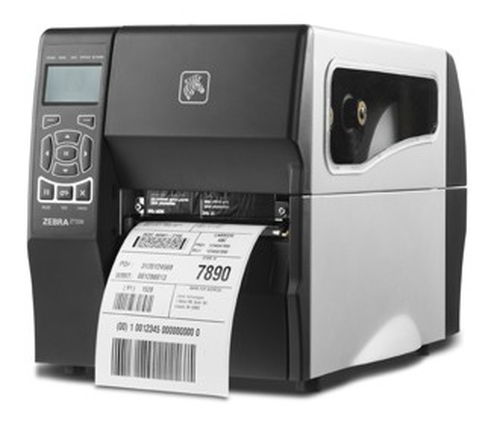

Zebra ZT230 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
Part number ZT23042-T01200FZ
ZT230 TT 203DPI 4IN SER USB _______________________
- Thermal transfer
- 203 x 203 DPI
- Printing colours: Black
- Maximum printing width: 10.4 cm Print speed: 152 mm/sec
- Built-in barcodes: Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD
- 9.1 kg
- Manufacturer
- ZEBRA
- Part number
- ZT23042-T01200FZ
- Condition
- New
- Category
- Data Capture / Point of Sale › Auto Id Printers
- 1GPA category
- Hardware
Overview
Zebra incorporated extensive customer feedback, as well as the legacy of its Stripe® and S4M™ printers, to create the new ZT200™ series printers, which feature space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 series is the right choice for a variety of labeling applications. This innovative new printer provides many user benefits.
The ZT200 series offers a streamlined design and smaller footprint that takes up less physical space than the Stripe and S4M models. ZT200 series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service. Your IT staff will appreciate the backwards compatibility, since it allows for new printers to be up and running with minimal time and effort.
The ZT200 series has been designed for ease of use, versatility and outstanding value.
- S4M replacement that easily integrates into your environment;
- Rugged all-metal case for long-lasting use;
- 450 m/1476’ ribbon capacity for increased uptime and fewer ribbon changes;
- Graphical user interface for easy printer setup and control;
- Ideally suited for barcode labeling applications requiring more frequent format or printer setting changes through use of the intuitive user interface.
Specifications
| Print technology | Thermal transfer |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152 mm/sec |
| Printing colours | Black |
| Maximum printing width | 10.4 cm |
| Maximum print size | 104 x 3988 mm |
|---|---|
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum label width | 11.4 cm |
| Maximum label length | 0.991 m |
| Media thickness | 0.076 - 0.025 mm |
| Media thickness (imperial) | 0.003 - 0.01" |
| Maximum media length | 3.99 m |
| Maximum media length (imperial) | 157" |
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| PC connected | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| RS-232 interface | Yes |
| Optional connectivity | Parallel, Wireless LAN |
| Page description languages | EPL2, ZPL II |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Certification | cTUVus, CE, FCC, VCCI, C-Tick, NOM, S Mark, CCC, GOST-R, KCC, BSMI, UkrSepro |
| Product colour | Black, Silver |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Housing material | Metal |
| Power requirements | 100-240V, 47-63Hz |
|---|
| Operating relative humidity (H-H) | 20 - 85% |
|---|---|
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 40 - 105 °F |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 140 °F |
| Width | 242 mm |
|---|---|
| Depth | 432 mm |
| Height | 277 mm |
| Weight | 9.1 kg |
| Sustainability certificates | ENERGY STAR |
|---|
| Network ready | Yes |
|---|---|
| Networking features | Fast Ethernet |
