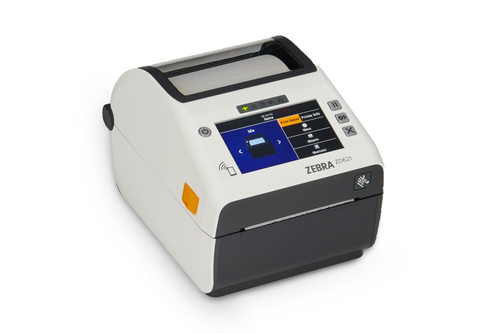

Zebra ZD621 label printer Direct thermal 203 x 203 DPI 203 mm/sec Wired & Wireless Ethernet LAN Bluetooth
Part number ZD6AL42-D21F00EZ
ZD621 DT PRINTER HEALTHCARE LOCKING CLR TOUCH LCD 203DPI USB
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.4 cm Print speed: 203 mm/sec
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Bluetooth 5.0
- Display: LCD 10.9 cm (4.3") 480 x 272 pixels Colour display
- 1.6 kg
- Manufacturer
- ZEBRA
- Part number
- ZD6AL42-D21F00EZ
- Condition
- New
- Category
- Data Capture / Point of Sale › Auto Id Printers
- 1GPA category
- Hardware
Overview
You need a premium, quality healthcare printer that’s built to perform flawlessly—day in and day out. Rely on Zebra’s ZD621 healthcare desktop printers, built specifically for healthcare, and advancing the proven and popular ZD620 printers. Don’t compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Healthcare-specific engineering with disinfectant-ready plastics, UV-resistant and medical-grade power supply. Unmatched security that’s constantly evolving to shield you from cyberattacks and safeguard your sensitive data, including patient information. A new standard 4.3-in., full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options. And, increased remote- management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security to keep you moving forward.
Specifications
| Print technology | Direct thermal |
|---|---|
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed | 203 mm/sec |
| Maximum printing width | 10.4 cm |
| Ribbon width | 10.9 cm |
|---|---|
| Ribbon length | 300 m |
| Maximum label length | 0.991 m |
| Maximum roll diameter | 12.7 cm |
| Media thickness | 0.08 - 0.19 mm |
| Supported paper width | 108 mm |
| Core diameters supported | 12.7 mm (0.5"), 25.4 mm (1"), 38.1 mm (1.5"), 76.2 mm (3") |
| Connectivity technology | Wired & Wireless |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| RS-232 interface | Yes |
| Page description languages | EPL2, PDF, XML, ZBI, ZPL II |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Product colour | Black, White |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Display resolution | 480 x 272 pixels |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Buttons |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Windows operating systems supported | Yes |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 4.4 - 41 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Width | 177 mm |
|---|---|
| Depth | 221 mm |
| Height | 151 mm |
| Weight | 1.6 kg |
| Sustainability certificates | ENERGY STAR |
|---|---|
| Compliance certificates | RoHS |
| Safety warning | IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| LED indicators | Yes |
|---|
