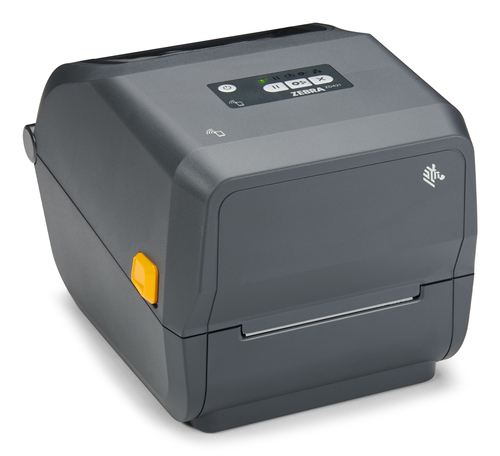

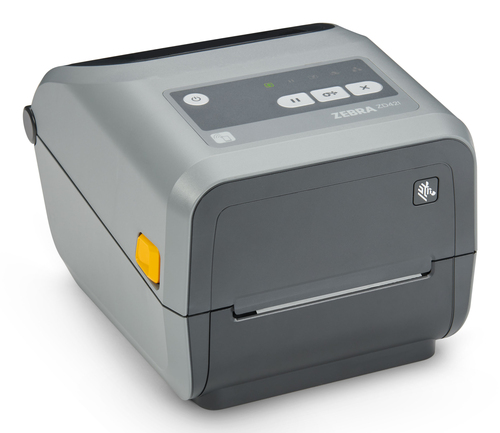

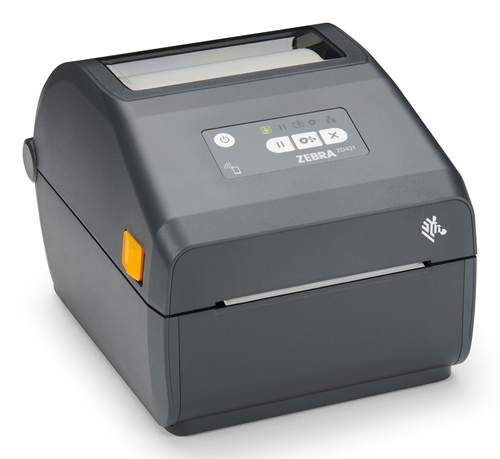

Zebra ZD421 label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
Part number ZD4AH42-D01X01EZ
DIRECT THERMAL PRINTER ZD421 HEALTHCARE 203DPI USB HOST MOD
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.4 cm Print speed: 152 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Datamatrix, EAN13, EAN8, ISBT-128, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, UPC-A, UPC-E
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Wi-Fi Bluetooth
- 1.35 kg
- Manufacturer
- ZEBRA
- Part number
- ZD4AH42-D01X01EZ
- Condition
- New
- Category
- Data Capture / Point of Sale › Auto Id Printers
- 1GPA category
- Hardware
Overview
The ZD421 offers advanced features that make it stand apart, including an intuitive user interface, powerful architecture and field-upgradeable wireless. It has new media guide and media handling designs that make daily operation even easier. It is available in Direct Thermal and thermal transfer models as well as a ribbon cartridge model, the ZD421C, which is loaded with features that make it the easiest printer to use in its class, including a cartridge for fast, fool-proof ribbon loading.
Specifications
| Print technology | Direct thermal |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed | 152 mm/sec |
| Maximum printing width | 10.4 cm |
| Ribbon width | 10.9 cm |
|---|---|
| Ribbon length | 300 m |
| Maximum label length | 0.991 m |
| Maximum roll diameter | 12.7 cm |
| Media thickness | 0.08 - 0.19 mm |
| Connectivity technology | Wired & Wireless |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| USB port | Yes |
| Page description languages | EPL2, PDF, XML, ZBI, ZPL II |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Datamatrix, EAN13, EAN8, ISBT-128, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, UPC-A, UPC-E |
| Product colour | Black |
|---|---|
| Control type | Buttons |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 4.4 - 41 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Width | 177.5 mm |
|---|---|
| Depth | 220.8 mm |
| Height | 150.7 mm |
| Weight | 1.35 kg |
| Cables included | AC, USB |
|---|
| Sustainability certificates | ENERGY STAR |
|---|---|
| Compliance certificates | BIS, BSMI, CCC, CE, KCC, Norma Oficial Mexicana (NOM), REACH, RoHS, VCCI, cTUVus |
