ZEBRA

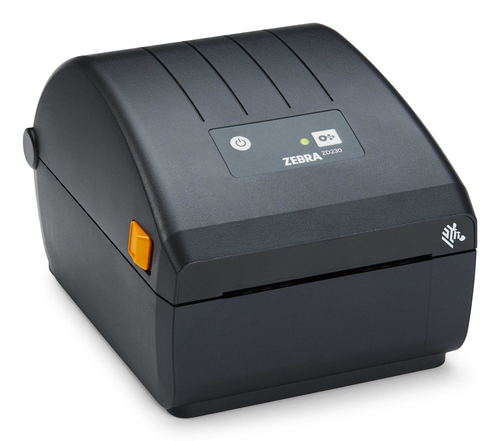

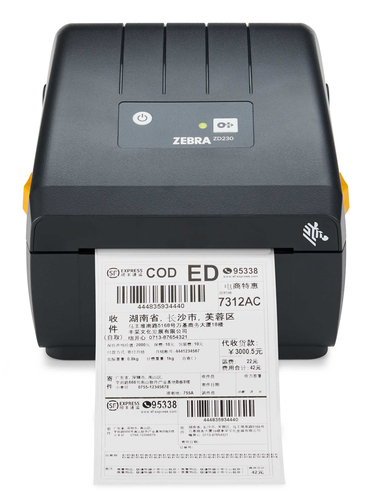

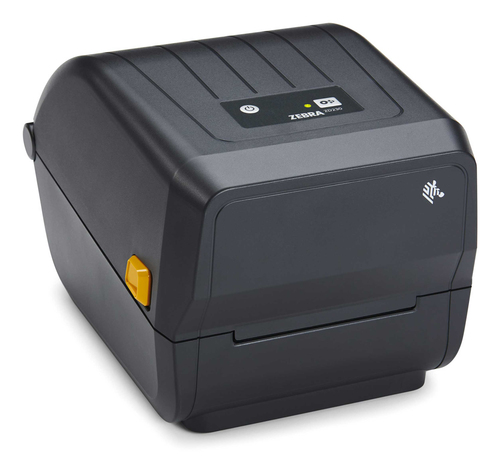

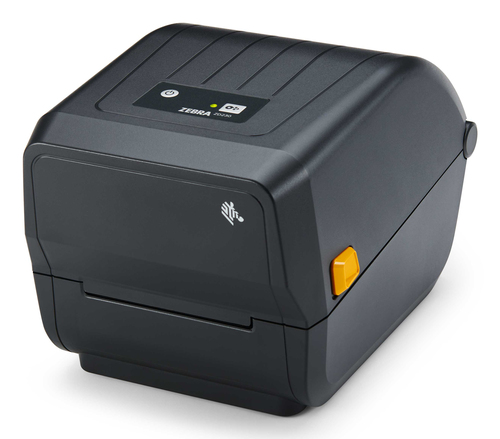

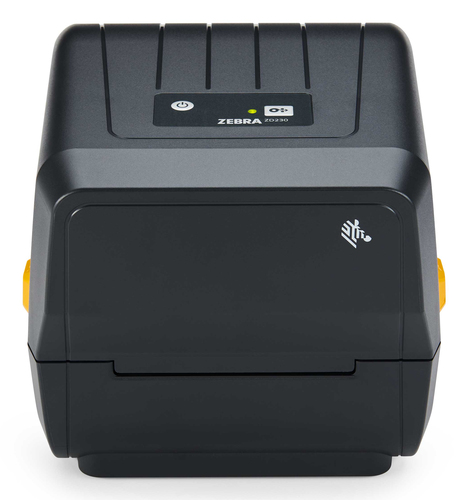

Zebra ZD230 label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Bluetooth

Part number ZD23042-301H00EZ

THERMAL TRANSFER PRINTER 74/300M ZD230 STANDARD EZPL 203 DPI

  • Direct thermal / Thermal transfer
  • 203 x 203 DPI
  • Maximum printing width: 10.4 cm Print speed: 152 mm/sec
  • Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
  • Connectivity technology: Wired & Wireless
  • USB port Bluetooth 4.1
  • 1.1 kg
Manufacturer
ZEBRA
Part number
ZD23042-301H00EZ
Condition
New
Category
Data Capture / Point of Sale › Pos Printers
1GPA category
Hardware

Overview

Get more: Extra features, quality construction, exceptional value

Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.

Get Printing Quickly

The ZD230 is simple to install and begin printing—right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-Fiᵀᴹ and Bluetooth™ connectivity options enable universal interoperability. The ZD230 can accommodate a 300 meter ribbon roll to lengthen the time between media changes. And, Zebra’s OpenACCESS™ clamshell design expedites media replacement. It’s also ENERGY STAR™ qualified to reduce your operational expenses.

Just the Features You Need

This 4-inch printer produces labels quickly, up to 6” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features Print DNAᵀᴹ Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Backed by Zebra’s Worldwide Service and Support

Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Consistently Exceptional Zebra Certified Supplies

Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design,

produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

Specifications

Printing
Print technologyDirect thermal / Thermal transfer
ColourNo
Maximum resolution203 x 203 DPI
Number of printable dots8 dot
Print speed152 mm/sec
Maximum printing width10.4 cm
Paper handling
Ribbon width10.9 cm
Ribbon length300 m
Maximum label width11.2 cm
Maximum label length0.991 m
Maximum roll diameter12.7 cm
Media thickness0.08 - 0.1905 mm
Supported paper width25.4 - 112 mm
Core diameter12.7 cm
Ports & interfaces
Connectivity technologyWired & Wireless
Wi-FiNo
BluetoothYes
Bluetooth version4.1
USB portYes
Performance
Page description languagesEPL, ZPL
Internal memory128 MB
Flash memory128 MB
Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Design
Product colourBlack
Built-in displayNo
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)4.4 - 41 °C
Storage temperature (T-T)-40 - 60 °C
Weight & dimensions
Width176 mm
Depth220 mm
Height151 mm
Weight1.1 kg
Packaging content
Cables includedAC
Technical details
Sustainability certificatesENERGY STAR

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
