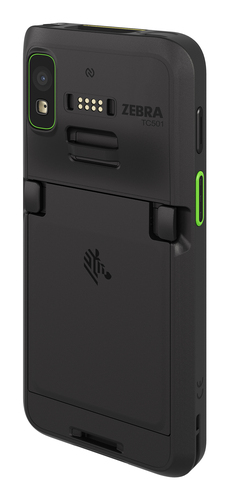

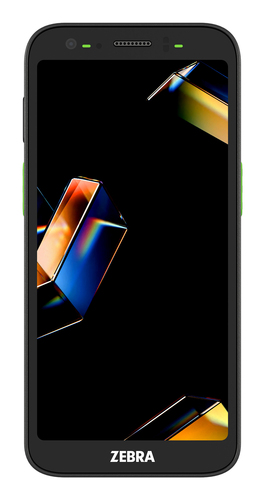

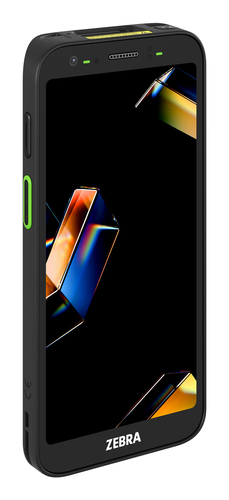

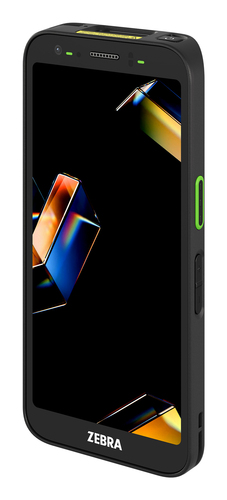

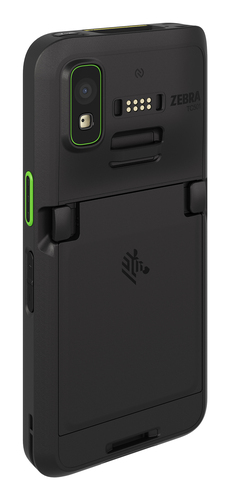

Zebra TC501 handheld mobile computer 15.2 cm (6") 2160 x 1080 pixels Touchscreen 284 g Black
Part number TC501G-321A1A1A01-NA
TC501 WAN 5G WIFI 7 6690 2.0GHZ 8GB RAM/128GB ROM SR500
15.2 cm (6") 2160 x 1080 pixels Touchscreen
8 GB
Compatible memory cards: MicroSD (TransFlash)
Qualcomm Dragonwing 2.9 GHz
GPS (satellite) Android
Bluetooth Bluetooth Low Energy (BLE) Data network: 5G, 4G Near Field Communication (NFC) Wi-Fi
Built-in camera 50 MP
Auto focus Built-in microphone RFID reader
Lithium-Ion (Li-Ion) 5000 mAh
Black
Manufacturer
ZEBRA
Part number
TC501G-321A1A1A01-NA
Condition
New
Category
Data Capture / Point of Sale › Adc Mobile Terminals
1GPA category
Hardware
Overview
TC501 Mobile Computer
Rugged mobile computing reimagined for the AI-powered frontline
Empowering your frontline with AI propels productivity, efficiency, customer satisfaction and profitability to exceptional heights. But running AI apps takes the right device. It takes the power to enable ultra-responsive apps. It takes the ability to capture a wealth of data to streamline and automate workflows, and empower workers with a new level of business intelligence—plus the durability to handle whatever the workday brings. Get it all with the TC501. A groundbreaking new processor is the new heart of the TC501, built specifically to enable high performance AI on-device. Zebra’s most powerful platform offers the most memory, the most advanced display technology, the fastest wireless networks and the most data capture options in any TC5 device—all in the most rugged TC5 device we’ve built to date. And develop AI apps in days instead of months with Zebra’s Frontline AI Suite. Empower your workers to work smarter every day with the TC501—the mobile computer built for the AI-powered generation.
Specifications
Display
Display
AMOLED
Display diagonal
15.2 cm (6")
Display resolution
2160 x 1080 pixels
Touchscreen
Yes
Touch technology
Multi-touch
Touchscreen type
Optical
Display brightness
1500 cd/m²
Display glass type
Corning Glass
Memory
Internal memory
8 GB
Flash memory
128 GB
Flash memory type
UFS
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
2 TB
Processor
Processor manufacturer
Qualcomm
Processor frequency
2.9 GHz
Processor family
Qualcomm Dragonwing
Number of cores
8
Network
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Bluetooth
Yes
Bluetooth version
6.0
Bluetooth Low Energy (BLE)
Yes
Data network
5G, 4G
4G standard
LTE
Near Field Communication (NFC)
Yes
GPS Performance
GPS (satellite)
Yes
GLONASS
Yes
BeiDou
Yes
Galileo
Yes
Camera
Built-in camera
Yes
Rear camera resolution (numeric)
50 MP
Front camera resolution (numeric)
8 MP
Auto focus
Yes
Built-in flash
Yes
Audio
Built-in microphone
Yes
Number of microphones
2
Speakers
stereo
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Performance
Product colour
Black
RFID reader
Yes
Barcode reader
Yes
Scanner type
1D/2D
USB On-The-Go support
Yes
Sensors
Ambient light sensor
Yes
Accelerometer
Yes
Proximity sensor
Yes
Gyroscope
Yes
Software
Operating system installed
Android
Weight & dimensions
Weight
284 g
Width
77.9 mm
Depth
15.5 mm
Height
165 mm
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Battery
Battery capacity
5000 mAh
Battery technology
Lithium-Ion (Li-Ion)
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
