ZEBRA

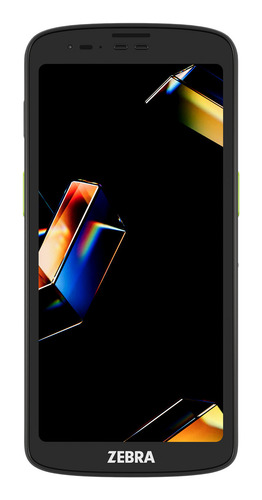

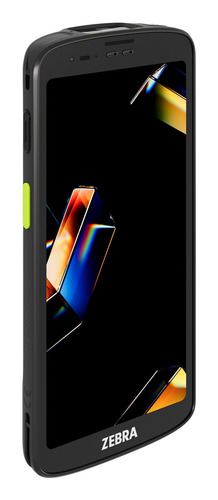

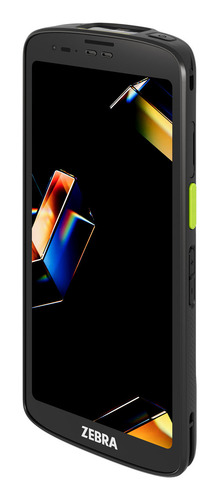

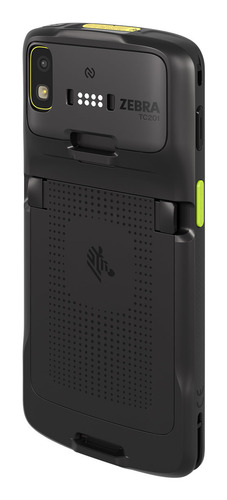

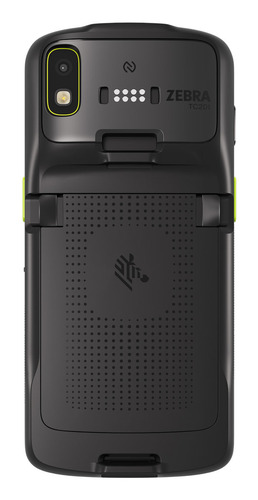

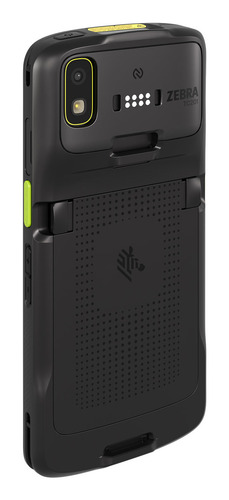

Zebra TC201 handheld mobile computer 15.2 cm (6") 2160 x 1080 pixels Touchscreen Black

Part number TC2010-0S3S6BA00-NA

TC201 LAN WIFI 7 AC670 6 DISPLAY 6GB/64GB 16MP RFC 5MP

  • Screen Size: 6 inches (15.2 cm)
  • Connectivity: Wi-Fi 7, 5G, 5G private network, Bluetooth 6.0, SIM, Dual eSIM, CBRS (US only), Bluetooth Low Energy
  • Memory: 6 GB LPDDR5 RAM/64 GB UFS 2.2 Flash, 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash
  • Battery Capacity: Standard Capacity: 3800 mAh (14.63 Wh) , Extended Capacity: 5200 mAh (20.02 Wh)
Manufacturer
ZEBRA
Part number
TC2010-0S3S6BA00-NA
Condition
New
Category
Data Capture / Point of Sale › Adc Mobile Terminals
1GPA category
Hardware

Overview

The new standard in cost-effective mobile computing for the frontline

Take frontline productivity to a new level with the TC201, the next generation TC2x Series that resets the bar for cost-effective mobile computers. This updated platform delivers a substantial performance leap over legacy devices1, giving workers the speed required for modern operations. The familiar, ergonomic design boasts class-leading ruggedness for unparalleled indoor and outdoor reliability, plus support for cloud-based AI applications. The fastest cellular and Wi-Fi connections keep workers connected—5G 3rd Gen Release 17 and Wi-Fi 7. Unmatched enterprise-grade security features protect your devices, data and networks. Enable powerful new use cases with optional RFID2 and a new advanced range scanner5 that captures barcodes up to 100 ft. (30 m) away, plus the versatility to capture high-resolution color images. And with backward compatibility with most TC2x accessories, migrating to this next evolution device is easy—and affordable.

Shield sensitive data and prevent physical hardware attacks with the optional Android Strongbox/Secure Element.5 Bring government-grade security to your business with FIPS 140-3 and Common Criteria Certification.

Specifications

Display
DisplayLED
Display diagonal15.2 cm (6")
Display resolution2160 x 1080 pixels
TouchscreenYes
Touch technologyMulti-touch
Touchscreen typeCapacitive
Display brightness450 cd/m²
Display glass typeGorilla Glass
Memory
Internal memory6 GB
Internal memory typeLPDDR5
Flash memory64 GB
Flash memory typeUFS
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size2 TB
Processor
Processor modelQ-6690
Processor manufacturerQualcomm
Processor frequency2 GHz
Processor familyQualcomm Dragonwing
Network
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 6 GHz)
BluetoothYes
Bluetooth version6.0
Bluetooth Low Energy (BLE)Yes
Security algorithms104-bit WEP, 40-bit WEP, AES-CCMP, AES-GCMP, EAP-SIM, EAP-AKA, EAP-PWD, EAP-TLS, EAP-TTLS, EAP-GTC, MSCHAPv2, OWE, PEAP, TKIP, WPA, WPA-Enterprise, WPA-Personal, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPA3-Personal, WPA3-SAE, FIPS 140-3
Near Field Communication (NFC)Yes
GPS Performance
GPS (satellite)Yes
GLONASSYes
GalileoYes
Camera
Built-in cameraYes
Rear camera resolution (numeric)16 MP
Front cameraYes
Front camera resolution (numeric)5 MP
Built-in flashYes
Audio
Built-in microphoneYes
Speakersstereo
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Performance
Product colourBlack
RFID readerYes
Barcode readerYes
Scanner type1D/2D
Phone functionYes
Vibrating alertYes
International Protection (IP) codeIP65, IP68
Push-to-Talk (PTT)Yes
Sensors
Ambient light sensorYes
AccelerometerYes
GyroscopeYes
MagnetometerYes
Software
Operating system installedAndroid
Weight & dimensions
Width78 mm
Depth12.5 mm
Height165 mm
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Battery
Battery technologyLithium-Ion (Li-Ion)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
