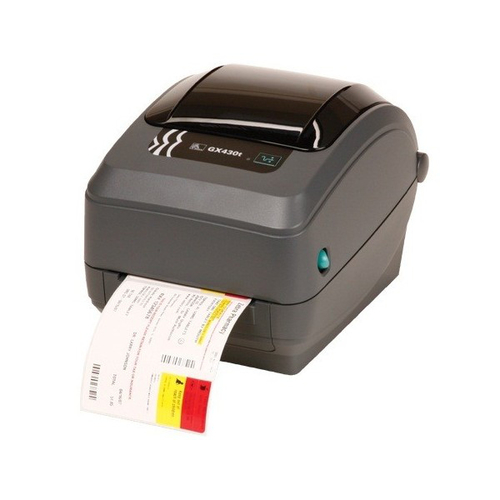

Zebra GX430t label printer Thermal transfer 300 x 300 DPI 102 mm/sec Wired

Part number GX43-102510-000

ZEBRA GX430 TT 300DPI EPL2/ZPL II USB/SER/PAR CP US

  • Thermal transfer
  • 300 x 300 DPI
  • Print speed: 102 mm/sec
  • Built-in barcodes: EAN128, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, UPC-A, UPC-E
  • Connectivity technology: Wired
  • 2.1 kg
Manufacturer
Zebra - Sourcing
Part number
GX43-102510-000
Condition
New
Category
Data Capture / Point of Sale › Auto Id Printers
1GPA category
Hardware

Overview

The best-in-class GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.

The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the GX430t desktop printer is a smart investment that’s always a perfect fit.

Specifications

Printing
Print technologyThermal transfer
Maximum resolution300 x 300 DPI
Print speed102 mm/sec
Minimum print length99.1 cm
Paper handling
Ribbon length74 m
Maximum roll diameter12.7 cm
Media thickness0.08 - 0.2 mm
Media thickness (imperial)0.003 - 0.0075"
Supported paper width104 mm
Supported paper width (imperial)4.09"
Maximum media length (imperial)39"
Ports & interfaces
Connectivity technologyWired
Parallel ports quantity1
RS-232 ports1
USB 1.1 ports quantity1
Performance
Page description languagesEPL, EPL2, ZPL, ZPL II
Internal memory8 MB
Flash memory4 MB
Built-in barcodesEAN128, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, UPC-A, UPC-E
Built-in processorYes
CertificationFCC 15, VCCI, C-Tick, EN55022 B, EN6100-3-2, EN6100-3-3, EN55024, CCC CB IEC 60950: 1991 +A1 +A2 + A3 +A4, TUV NRTL, IRAM, NOM, AAMI
Design
Product colourBlack
Built-in displayNo
DisplayNo
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage24 V
AC adapter output current3.125 A
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)5 - 41 °C
Storage temperature (T-T)-40 - 60 °C
Weight & dimensions
Width194 mm
Depth254 mm
Height191 mm
Weight2.1 kg
Packaging data
Package weight4.1 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
