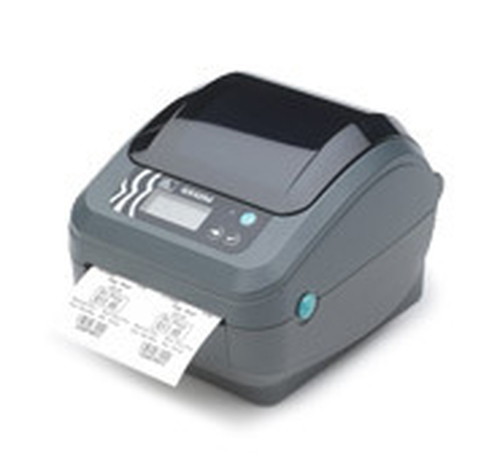

Zebra GX420d label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired
Part number GX42-202410-000
ZEBRA GX420D GX420D DIRECT THERMAL LABEL RECEIPT BARCODE
- Direct thermal
- 203 x 203 DPI
- Print speed: 152 mm/sec
- Built-in barcodes: EAN128, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, UPC-A, UPC-E
- Connectivity technology: Wired
- 1.2 kg
- Manufacturer
- Zebra - Sourcing
- Part number
- GX42-202410-000
- Condition
- New
- Category
- Data Capture / Point of Sale › Auto Id Printers
- 1GPA category
- Hardware
Overview
The best-in-class GX420d direct thermal printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420d has a sleek and compact design, boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries.
The GX420d comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable GX420d desktop printer is a smart investment that’s always a perfect fit.
-Print speed: up to 6" (152 mm) per second.
-Print method: direct thermal.
-EPL and ZPL programming languages standard.
-OpenACCESS design for easy media loading.
-Smallest footprint in a 4-inch thermal printer.
-Dual-wall reinforced plastic construction.
-32 bit RISC processor.
-XML-enabled printing.
Specifications
| Print technology | Direct thermal |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152 mm/sec |
| Maximum roll diameter | 12.7 cm |
|---|---|
| Media thickness | 0.08 - 0.2 mm |
| Media thickness (imperial) | 0.003 - 0.0075" |
| Supported paper width | 104 mm |
| Supported paper width (imperial) | 4.09" |
| Maximum media length | 99.1 cm |
| Maximum media length (imperial) | 39" |
| Connectivity technology | Wired |
|---|---|
| RS-232 ports | 1 |
| RS-232 interface | Yes |
| USB 1.1 ports quantity | 1 |
| Standard interfaces | Ethernet |
| Optional connectivity | Bluetooth |
| Internal memory | 8 MB |
|---|---|
| Flash memory | 4 MB |
| Built-in barcodes | EAN128, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, UPC-A, UPC-E |
| Certification | -FCC Part 15, -Subpart 15, - VCCI, -C-Tick, -EN55022 Class-B, -EN6100-3-2, -EN6100-3-3, -EN55024, -CCC, -CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4, -TUV NRTL, -IRAM, -NOM, -AAMI. |
| Product colour | Black |
|---|
| Power requirements | 100-240V, 50-60Hz |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 40 - 105 °F |
| Operating temperature (T-T) | 5 - 41 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 140 °F |
| Width | 171 mm |
|---|---|
| Depth | 209 mm |
| Height | 152 mm |
| Weight | 1.2 kg |
| Package weight | 3.2 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
