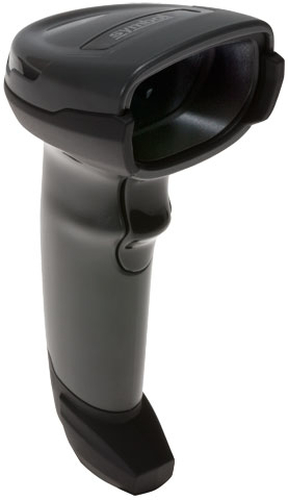

Motorola Symbol DS4308-SR Handheld bar code reader 2D Black
Part number DS4308-SR00007PZWW
ZEBRA DS4308 SYMBOL BARCODE
- Handheld bar code reader Black
- Scanner type: 2D
- Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, U.P.C. Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Wired
- Manufacturer
- Zebra - Sourcing
- Part number
- DS4308-SR00007PZWW
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
Handheld Scanner That Does It All
When customers are looking for extraordinary flexibility and performance in a handheld scanner, the next-generation scanning technology in the DS4308-SR/DL/HD delivers. Its truly extraordinary range does the job of two scanners, allowing users to scan nearer and farther than any other scanner in its class. Workers can scan virtually any bar code—1D or 2D, electronic or printed on paper labels or plastic cards, even if the bar code is dirty, scratched, or poorly printed. For workers who need to capture more than bar codes, the megapixel engine enables the capture of crystal clear photos, signatures, and more accurate OCR data. Adjustable beeper volume and frequency allows users to tailor the DS4308-SR/DL/HD to meet specific environmental needs, from a soft tone that won't disturb shoppers in a quiet boutique store to a louder tone that workers in a manufacturing plant can easily hear.
Deployment couldn't be easier. Smart auto-host detect cables automatically determine which interface is attached, eliminating the need to scan numerous bar codes to properly configure. With PRZM Intelligent Imaging inside, users can capture bar codes as fast as they can pull the scan trigger. That means shorter lines, shorter wait times, and more sales. The DS4308-SR/DL/HD is a new class of scanner for a new world of bar codes.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Motion tolerance (cm/s) | 76.2 |
| Connectivity technology | Wired |
|---|
| LED indicators | Yes |
|---|---|
| Buzzer | Yes |
| Built-in display | No |
| Product colour | Black |
| Certification | UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. IEC 62471:2006 and EN 62471:2008 FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024, Medical Electrical Equipment: EN60601-1-2 |
| Input voltage | 5 V |
|---|---|
| Power consumption | 360 mA |
| Width | 67 mm |
|---|---|
| Depth | 98 mm |
| Height | 165 mm |
| Weight | 162 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
