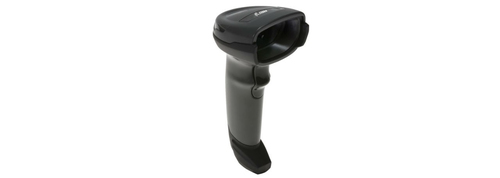

Zebra Symbol DS4308-HC Handheld bar code reader 1D/2D Black
Part number DS4308-HCBU2100AZA
ZEBRA DS4308 SYMBOL BARCODE
- Handheld bar code reader Plastic Black
- Scanner type: 1D/2D
- Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Tilt reading angle: 0 - 360°
- Wired
- Manufacturer
- Zebra - Sourcing
- Part number
- DS4308-HCBU2100AZA
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
A NEW LEVEL OF PERFORMANCE and MORE VERSATILITY allow capture of any barcode
If you’re looking for extraordinary flexibility and performance in your handheld scanner, the next-generation scanning technology in the DS4308 delivers. Its truly extraordinary range does the job of two scanners, allowing you to scan nearer and farther than any other scanner in this class. Your workers can scan virtually any barcode.
The DS4308 does it all — 1D or 2D, electronic or printed on paper labels or plastic cards, even if the barcode is dirty, scratched or poorly printed. With PRZM Intelligent Imaging inside, your workers can capture barcodes as fast as they can pull the scan trigger. And that means no more Point-of-Sale exceptions that can turn into longer lines, longer wait times and lost sales. The DS4308 — a new class of scanner for a new world of barcodes.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Light levels (direct sunlight) | 1600 - 86000 lx |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Connectivity technology | Wired |
|---|
| Housing material | Plastic |
|---|---|
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1 |
| Width | 67 mm |
|---|---|
| Depth | 98 mm |
| Height | 165 mm |
| Weight | 162 g |
| Operating temperature (T-T) | 32 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
