ZEBRA

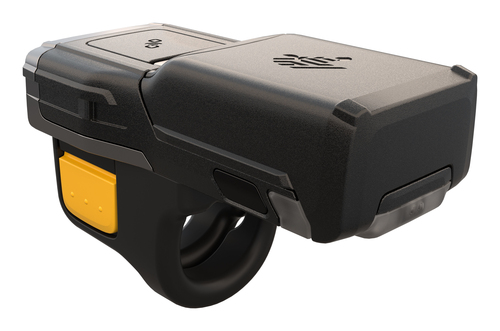

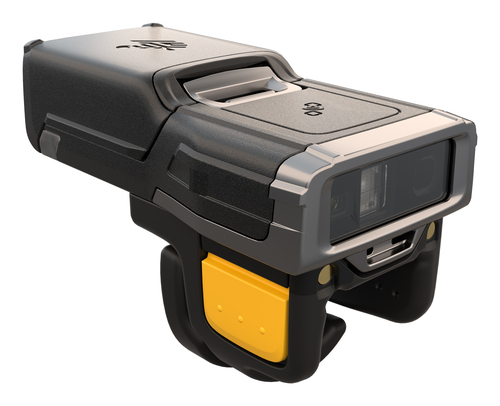

Zebra RS6100 Wearable bar code reader 2D LED Grey, Yellow

Part number RS61B0-KEDSXWR

RS6100 WEARABLE SCANNER SE55 EXTD BATT DOUBLE TRIGGER -30OC

  • Decode session timeout is limited to a maximum of 4 seconds
  • At temperatures between -10C and -20C, scanner illumination is decreased and focus ramping is slowed
  • At temperatures below -20C, the maximum decode session timeout is reduced to 0.8 seconds
Manufacturer
ZEBRA
Part number
RS61B0-KEDSXWR
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

RS6100 Wearable Scanner, SE55, Standard Battery, Single Trigger,

0C to +50C Operation, Worldwide

Introducing Zebra’s most powerful and versatile wearable scanner — the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there’s a style that will maximize comfort for every user. Use it anywhere — from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery — no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.

Specifications

Scanning
TypeWearable bar code reader
Scanner type2D
Sensor typeLED
Linear (1D) barcodes supportedCodabar, Code 128, Code 39, Code 93, MSI, Standard 2 of 5
2D (matrix & stacked) barcodes supportedAztec Code, Chinese Sensible Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)2688 x 1520 pixels
Light levels (direct sunlight)107.639 - 107.639 lx
Wavelength515 nm
Pitch reading angle60 - 60°
Yaw reading angle60 - 60°
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesBluetooth
Bluetooth version5.2
Bluetooth Low Energy (BLE)Yes
Near Field Communication (NFC)Yes
Performance
International Protection (IP) codeIP65
Protection featuresDrop resistant, Electrostatic Discharge (ESD) protection, Vibration proof
Product colourGrey, Yellow
Power
Power source typeBattery
Weight & dimensions
Width66.6 mm
Depth32.7 mm
Height21 mm
Weight76 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Drop resistance1.8 m
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity735 mAh
Technical details
Warranty period1 year(s)
Compliance certificatesREACH, RoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
