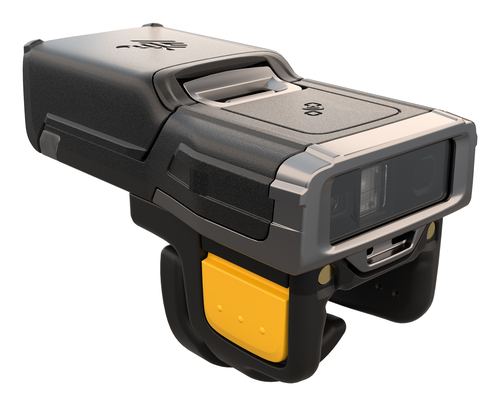

Zebra RS6100 Wearable bar code reader 2D LED Grey, Yellow
Part number RS61B0-KBDSZWR
RS6100 WEARABLE SCANNER SE55 STD BATT DOUBLE TRIGGER 0OC TO +50O
- Wearable bar code reader Grey, Yellow
- Scanner type: 2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- 2688 x 1520 pixels
- Wireless
- Near Field Communication (NFC)
- Power source type: Battery Lithium-Ion (Li-Ion) 735 mAh
- Manufacturer
- ZEBRA
- Part number
- RS61B0-KBDSZWR
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
The RS6100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode symbologies. The RS6100 is also compatible with a wide range of mobile computers communicating over Bluetooth.
Specifications
| Type | Wearable bar code reader |
|---|---|
| Scanner type | 2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 2688 x 1520 pixels |
| Wavelength | 515 nm |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Connectivity technology | Wireless |
|---|---|
| Near Field Communication (NFC) | Yes |
| Product colour | Grey, Yellow |
|---|
| Power source type | Battery |
|---|
| Width | 66.6 mm |
|---|---|
| Depth | 32.7 mm |
| Height | 21 mm |
| Weight | 76 g |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 735 mAh |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
