Products › Data Capture / Point of Sale

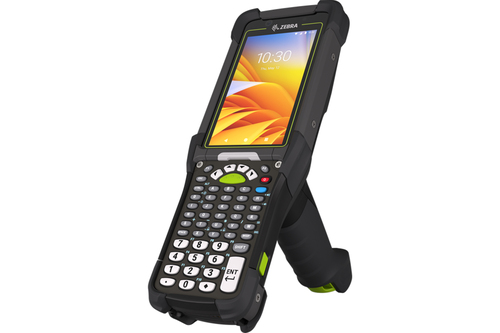

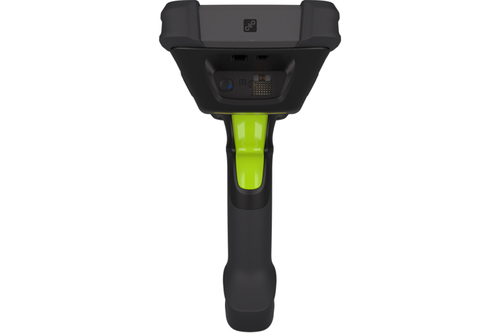

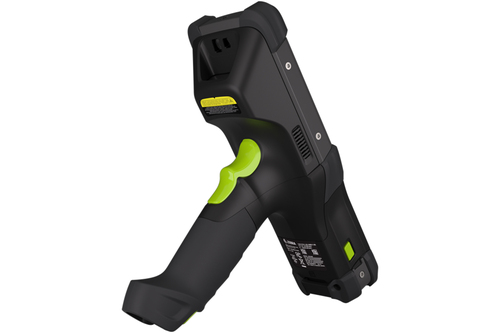

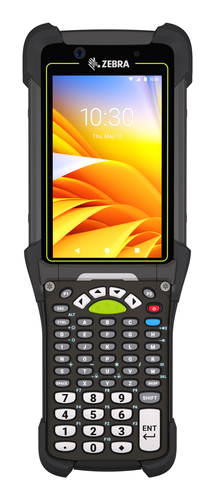

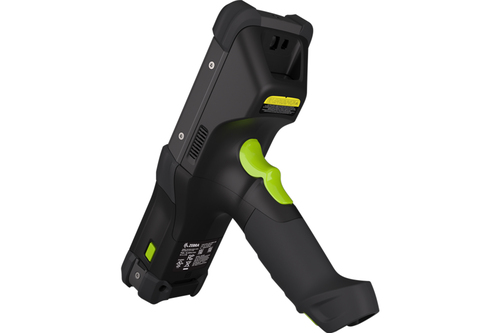

Zebra MC9450 handheld mobile computer 10.9 cm (4.3") 800 x 480 pixels Touchscreen 743 g Black
Part number MC945A-3G1R6DSB-NA
MC94 LAN WIFI6E WAN 5G/LTE GPS ESIM GUN BT NFC 4.3IN DISP VIB SE58
- 10.9 cm (4.3") 800 x 480 pixels Touchscreen
- 6 GB
- Compatible memory cards: MicroSD (TransFlash)
- Qualcomm 4490 2.4 GHz
- GPS (satellite) Android
- Bluetooth Bluetooth Low Energy (BLE) Data network: 5G Near Field Communication (NFC) Wi-Fi
- Built-in camera 16 MP
- Auto focus Built-in microphone
- Lithium-Ion (Li-Ion) 7000 mAh
- Black
- Manufacturer
- ZEBRA
- Part number
- MC945A-3G1R6DSB-NA
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
The next evolution in the ultra-rugged MC9000 Series — now with more power,
advanced scanning and the fastest cellular and Wi-Fi connections — Wi-Fi 6E and 5G
Nearly five million MC9000 Series ultra-rugged mobile computers have helped streamline and error-proof processes in the toughest environments — from manufacturing and warehousing to ports, yards and retail stores. Introducing the next evolution in this highly successful handheld mobile computer family, the MC9400/MC9450. Loaded with all the latest mobile technologies, these devices
are faster, ready to power the new generation of industrial applications. Scanning is easier with the world’s greatest scanning range — from in-hand to over 100 ft./30.5 m away. And with Wi-Fi 6E and private and public 5G, you get the fastest wireless connections available today — plus the ability to easily and cost-effectively extend your wireless networks to the most expansive indoor and outdoor facilities.
Specifications
| Display diagonal | 10.9 cm (4.3") |
|---|---|
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display glass type | Gorilla Glass |
| Internal memory | 6 GB |
|---|---|
| Flash memory | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor model | 4490 |
|---|---|
| Processor manufacturer | Qualcomm |
| Processor frequency | 2.4 GHz |
| Processor family | Qualcomm |
| Number of cores | 8 |
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bluetooth Low Energy (BLE) | Yes |
| SIM card type | NanoSIM + eSIM |
| Data network | 5G |
| Near Field Communication (NFC) | Yes |
| GPS (satellite) | Yes |
|---|
| Built-in camera | Yes |
|---|---|
| Rear camera resolution (numeric) | 16 MP |
| Front camera resolution (numeric) | 8 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Built-in microphone | Yes |
|---|---|
| Speakers | Yes |
| USB 2.0 ports quantity | 1 |
|---|
| Product colour | Black |
|---|---|
| Barcode reader | Yes |
| Scanner type | 1D/2D |
| International Protection (IP) code | IP65, IP68 |
| Ambient light sensor | Yes |
|---|---|
| Accelerometer | Yes |
| Magnetometer | Yes |
| Operating system installed | Android |
|---|
| Weight | 743 g |
|---|---|
| Width | 88 mm |
| Depth | 240 mm |
| Height | 189 mm |
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Battery capacity | 7000 mAh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
