Products › Data Capture / Point of Sale

ZEBRA

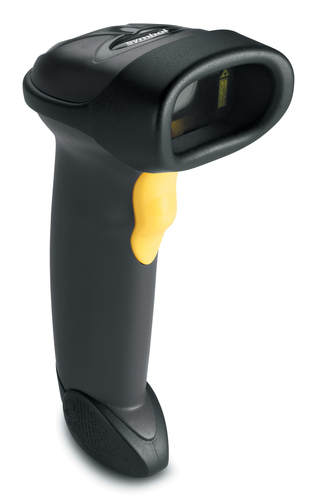

Zebra LS2208 Handheld bar code reader 1D Laser Black

Part number LS2208-SR20007NA

LS2208-LASER SCAN STD RANGE CORDED BLK NA (CBL NOT INCLUDED)

  • Handheld bar code reader Black
  • Scanner type: 1D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39 (ASCII), Code 93, GS1 DataBar, Pharmacode, Plessey, Standard 2 of 5
  • Working distance: 63.5 cm
  • Tilt reading angle: -10 - 10°
  • Wired Standard interfaces: RS-232, RS-485, Keyboard wedge, USB
  • Power source type: DC
Manufacturer
ZEBRA
Part number
LS2208-SR20007NA
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

LS2208-SR20007NA

ASSEMBLY,LS2208,BLK,DECODED,MULTI, TWILIGHT BLACK

Our best selling handheld laser scanner

With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.

Capture high-density bar codes for greater application flexibility

With just one scanner, you can capture the high density bar codes common on small items.

Deploy in every corner of the world

With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.

Class-leading working range

Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

More decode feedback options

Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.

All day comfort your workers can count on

The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.

Durable construction

With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.

Flexible handheld or hands-free operation

The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.

Multiple interfaces

No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.

Truly plug-and-play

The universal cable connects to any computing environment, practically eliminating setup and training time.

Advanced Data Formatting (ADF)

Format data properly before it is sent to your host computer, eliminating the costly modification of host software.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39 (ASCII), Code 93, GS1 DataBar, Pharmacode, Plessey, Standard 2 of 5
Scanner resolution3 mm
Working distance63.5 cm
Read rate (max)100 reads/s
Light levels (direct sunlight)0 - 86080 lx
Wavelength650 nm
Tilt reading angle-10 - 10°
Pitch reading angle-65 - 65°
Yaw reading angle-60 - 60°
Ports & interfaces
Connectivity technologyWired
Standard interfacesRS-232, RS-485, Keyboard wedge, USB
Performance
International Protection (IP) codeIP30
Protection featuresDrop resistant, Scratch resistant
LED indicatorsYes
Product colourBlack
CertificationEN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC CDRH Class II; IEC Class 2
Power
Power source typeDC
Input voltage4.5 - 5.5 V
Power consumption175 mA
Weight & dimensions
Width64 mm
Depth85 mm
Height152 mm
Weight150 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Drop resistance0.5 m
Technical details
Compliance certificatesFederal Communications Commission (FCC), RoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
