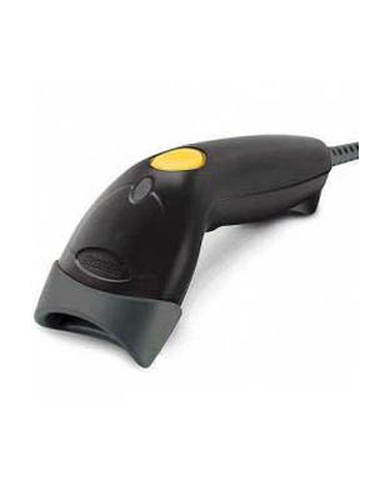

Motorola LS1203 Laser Black
Part number LS1203-CR10007R
LS1203 W/RS232 USB KBW INTFACE CLOSE RANGE BLK
- Black
- Sensor type: Laser
- Tilt reading angle: -30 - 30°
- Standard interfaces: RS-232, Keyboard wedge, USB
- Manufacturer
- ZEBRA
- Part number
- LS1203-CR10007R
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
Specifications
| Sensor type | Laser |
|---|---|
| Read rate (max) | 100 reads/s |
| Wavelength | 650 nm |
| Tilt reading angle | -30 - 30° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Standard interfaces | RS-232, Keyboard wedge, USB |
|---|
| Product colour | Black |
|---|
| Input voltage | 5 V |
|---|---|
| Power consumption | 100 mA |
| Weight | 122 g |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
