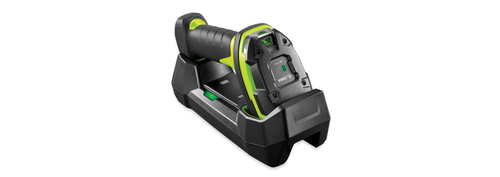

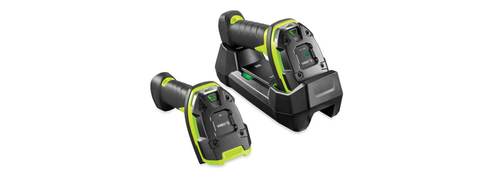

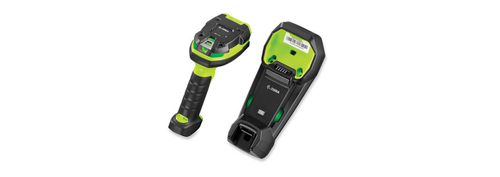

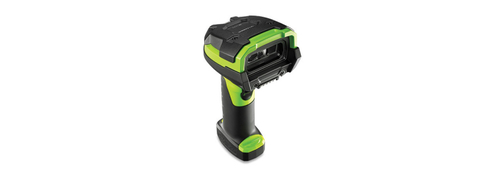

Zebra LI3678 Handheld bar code reader 1D Green
Part number LI3678-SR3U4210S1W
LI3678-SR RUGGED GREEN VIBR MTR STD CRADLE USB KIT SCAN CBA-U42
- Handheld bar code reader Green
- Scanner type: 1D
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, U.P.C.
- Wireless Standard interfaces: Bluetooth, RS-232
- Bluetooth Low Energy (BLE)
- Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
- Manufacturer
- ZEBRA
- Part number
- LI3678-SR3U4210S1W
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
Unstoppable Performance for 1D barcode capture
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D LI3608 corded and LI3678 cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor. Loaded with features that deliver truly unstoppable performance, the LI3608 and LI3678 redefine scanner reliability and management simplicity.
The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
Superior Performance
You get the ultimate in 1D scanning performance — period. Your workers can scan barcodes as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Are barcodes under shrinkwrap? Damaged? Dirty? Poorly printed? No problem, this intelligent scanner can handle it all.
Ultra-rugged design
The manufacturing plant floor is as tough as its gets — and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category — the ultra-rugged scanner. This dust-tight and waterproof scanner offers the highest drop, tumble and sealing specification in this class, and is the only scanner to offer two sealing ratings — IP65 and IP67.
Unrivaled Manageability
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
MORE FEATURES FOR WORKERS
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Optical sensor resolution | 1500 pixels |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 617 nm |
| Pitch reading angle | -65 - 65° |
| Connectivity technology | Wireless |
|---|---|
| Standard interfaces | Bluetooth, RS-232 |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| PC connection | RS-232/USB |
| International Protection (IP) code | IP65 |
|---|---|
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Green |
| Programming function | Yes |
| Certification | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006; EN 62471: 2008 |
| Power source type | Battery |
|---|---|
| Number of reads per charge | 70000 |
| Width | 76 mm |
|---|---|
| Depth | 142 mm |
| Height | 185 mm |
| Weight | 385 g |
| Cables included | AC, USB |
|---|---|
| Charging base | Yes |
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 3100 mAh |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
