ZEBRA

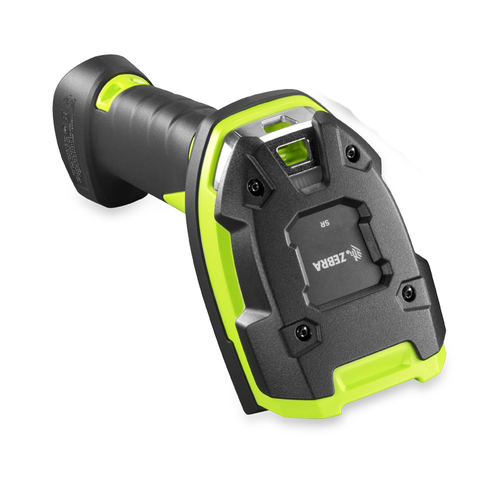

Zebra LI3678-SR Handheld bar code reader 1D Black, Green

Part number LI3678-SR0F003VZWW

LI3678 RUGGED LINEAR IMAGER STD RANGE WL FIPS GREEN VIBR MOTOR

Handheld bar code reader Black, Green
Scanner type: 1D
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Tilt reading angle: -65 - 65°
Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
Bluetooth Low Energy (BLE)
Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh

Overview

LI3678 RUGG LIN IMAG STD RANGE CORDLESS IND GREEN VIB MOTOR

Scanning
Type	Handheld bar code reader
Optical sensor resolution	1500 pixels
Scanner type	1D
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Wavelength	617 nm
Tilt reading angle	-65 - 65°
Pitch reading angle	-65 - 65°
Yaw reading angle	-45 - 45°

Performance
International Protection (IP) code	IP67
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
Product colour	Black, Green
Programming function	Yes

Power
Power source type	Battery
Number of reads per charge	70000

Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh

Technical details
Compliance certificates	RoHS

Logistics data
Harmonized System (HS) code	84716070

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
