Products › Data Capture / Point of Sale

ZEBRA

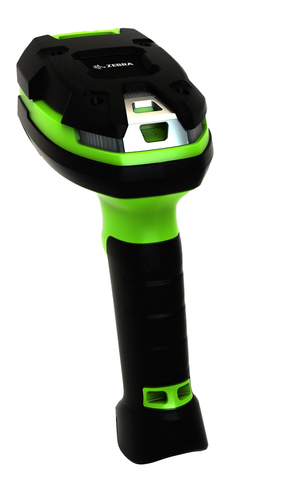

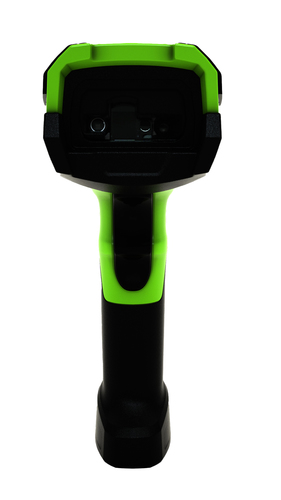

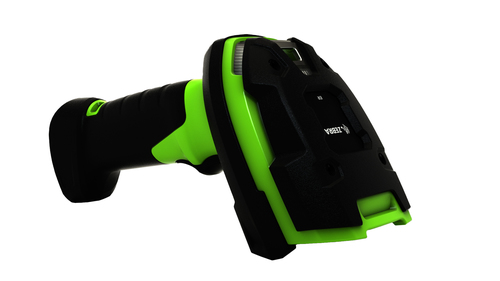

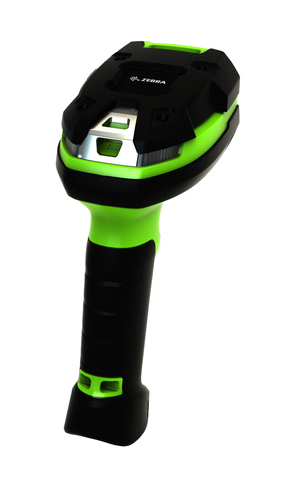

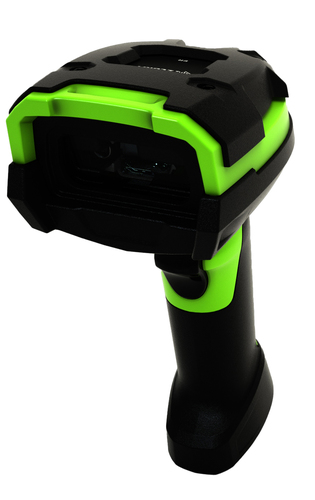

Zebra LI3608-ER Handheld bar code reader 1D Black, Green

Part number LI3608-ER3RF50AZVW

LI3608-ER CORDED ROCKWELL INDUSTRIAL ETHERNET KIT LI3608-

  • Handheld bar code reader Black, Green
  • Scanner type: 1D
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
  • Working distance: 17.1 m
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
Manufacturer
ZEBRA
Part number
LI3608-ER3RF50AZVW
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

Unstoppable performance for extended-range 1D barcode capture

"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.

In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.

Specifications

Scanning
TypeHandheld bar code reader
Optical sensor resolution2496 pixels
Scanner type1D
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedNot supported
Working distance17.1 m
Light levels (direct sunlight)0 - 107639 lx
Wavelength660 nm
Pitch reading angle-65 - 65°
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesRS-232, USB, Keyboard wedge
Data transfer rate3 Mbit/s
Wireless range100 m
Bluetooth version4.0
Bluetooth Low Energy (BLE)Yes
Performance
International Protection (IP) codeIP67
Protection featuresDust resistant, Water resistant
LED indicatorsYes
Product colourBlack, Green
Programming functionYes
Power
Power source typeBattery
Number of batteries supported1
Number of reads per charge100000
Weight & dimensions
Width76 mm
Depth132 mm
Height185 mm
Weight327 g
Packaging data
Cables includedNo
Operational conditions
Operating temperature (T-T)-30 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3100 mAh
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84716070

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
