Products › Data Capture / Point of Sale

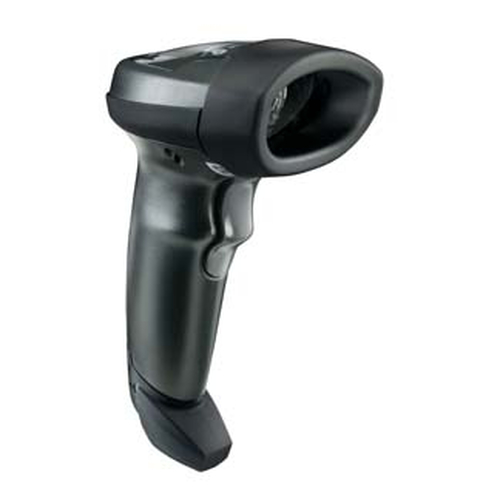

Motorola LI2208 Handheld bar code reader 1D Linear Black
Part number LI2208-SR00007ZZWW
LI2208 TWILIGHT BLACK LINEAR IMAGER STD RANGE CORDED
- Handheld bar code reader Black
- Scanner type: 1D Sensor type: Linear
- Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN, U.P.C.
- Wired Standard interfaces: RS-232
- Power source type: DC
- Manufacturer
- ZEBRA
- Part number
- LI2208-SR00007ZZWW
- Condition
- New
- Category
- Data Capture / Point of Sale › Auto Id Accessories
- 1GPA category
- Hardware
Overview
Whether your workers are scanning bar codes printed on paper labels or electronic bar codes displayed on the screen of a mobile phone, tablet or computer, the best-in-class LI2208 linear imager delivers unparalleled performance, every time.The next generation in 1D scanning, the LI2208 provides the same reliability and ergonomics of our most popular scanner, the LS2208, with enhanced features that let you scan more types of bar codes at a greater distance. From the retail POS to shipping/receiving and hotel check-in, the LI2208 allows your workers to better meet the needs of your business.
Excellent 1D scanning performance
Delivers superior scanning speed and a wide data capture range
Captures virtually all 1D bar codes on any surface — including mobile phone displays
Capture bar codes printed on traditional paper labels or displayed on the screen of a mobile phone, tablet or computer
Industry-leading working range
Reads 13 mil 100% UPC bar codes from 1 in./2.54 cm to over 30 in./76.2 cm as well as high density codes and extended ranges for greater application flexibility
Patented single circuit board construction
Maximizes durability and reduces downtime by removing the most common points of failure
Compatible with 123Scan² and Scanner Management Service (SMS)
Dramatically reduces management time and cost, from initial configuration to day-to-day management; SDK available for custom development
Superior motion and angular tolerance
Bar codes can be captured faster, and there is no need to pause during scans
International keyboard support
Support for over 90 international keyboards enables easy deployment anywhere in the world
Withstands 100 consecutive drops to concrete and 1,000 consecutive 1.64 ft./0.5 m tumbles
Ensures reliable operation despite the inevitable everyday drops to help maximize uptime
Flexible modes — handheld and presentation
Gooseneck Intellistand enables presentation scanning and automatic switching between hands-free and handheld operation
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D |
| Sensor type | Linear |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN, U.P.C. |
| Read rate (max) | 547 reads/s |
| Wavelength | 617 nm |
| Pitch reading angle | -65 - 65° |
| Connectivity technology | Wired |
|---|---|
| Standard interfaces | RS-232 |
| Cable length | 2.1 m |
| International Protection (IP) code | IP42 |
|---|---|
| Product colour | Black |
| Power source type | DC |
|---|
| Width | 67 mm |
|---|---|
| Depth | 99 mm |
| Height | 160 mm |
| Weight | 140 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
