ZEBRA

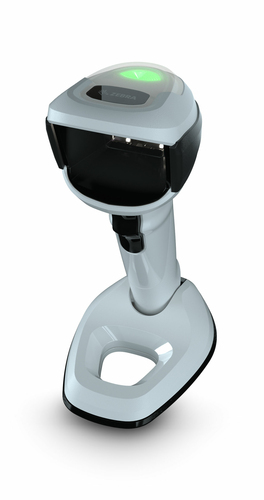

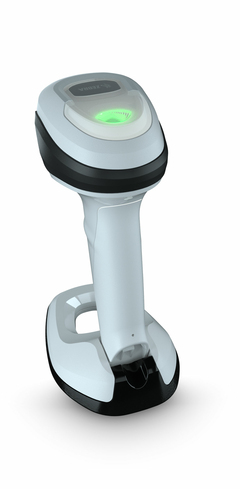

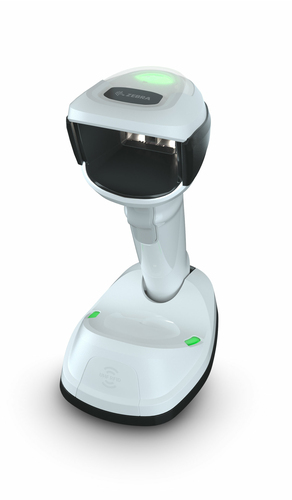

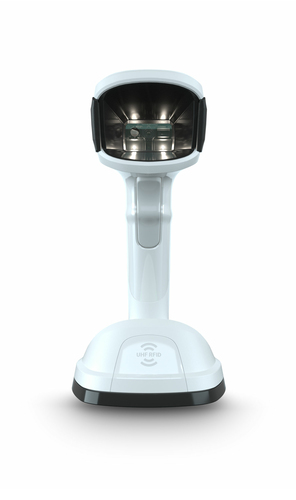

Zebra DS9908-HL Handheld bar code reader 1D/2D White

Part number DS9908-HLWU2105AZU

DS9908-HL WHT USB US SCANNER CBA-U21-S07ZBR SHIELDED USB CABLE

  • Handheld bar code reader White
  • Scanner type: 1D/2D
  • Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, MSI-Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • 1280 x 800 pixels
  • Built-in processor 800 MHz
  • Wired Standard interfaces: RS-232, RS-485, USB
  • Power source type: DC
Manufacturer
ZEBRA
Part number
DS9908-HLWU2105AZU
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB

Barcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.

SCAN IT ALL

High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.

TWO SCANNERS IN ONE

While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.

UNRIVALED MANAGEABILITY

Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, MSI-Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength617 nm
Pitch reading angle-60 - 60°
Ports & interfaces
Connectivity technologyWired
Standard interfacesRS-232, RS-485, USB
Performance
International Protection (IP) codeIP52
LED indicatorsYes
Built-in displayNo
Image formats supportedBMP, JPEG, TIFF
Built-in processorYes
Processor frequency800 MHz
Product colourWhite
Power
Power source typeDC
Input voltage5 V
Power consumption321 mA
Weight & dimensions
Width94 mm
Depth132 mm
Height203 mm
Weight330 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
