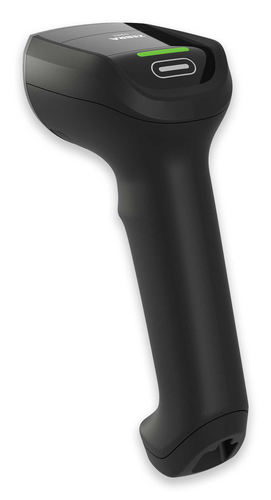

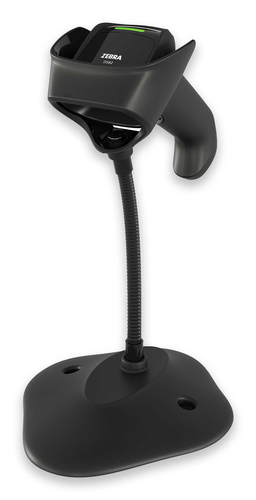

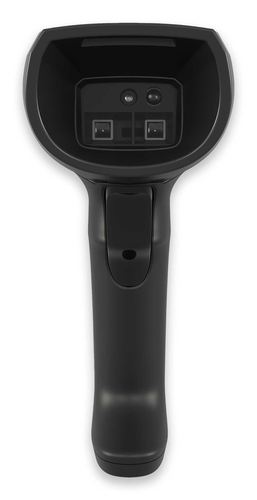

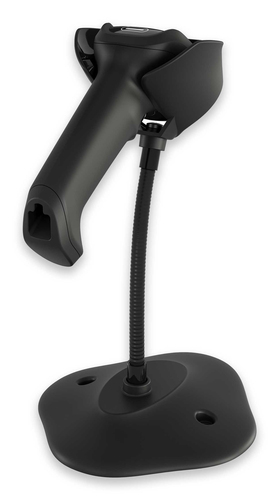

Zebra DS8288 Handheld bar code reader 1D/2D LED Black
Part number DS8288-DL4U2104SVN
KIT DS8288DL BLK FIPS VIBR STD CRAD USB KIT NA DS8288DL4F004VZNA
- Scan Type: 1D, 2D, Digimarc, OCR
- Image Sensor: 1600x1200 pixels
- Scan Range: Standard Range
- Corded/Cordless: Corded
- Manufacturer
- ZEBRA
- Part number
- DS8288-DL4U2104SVN
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
Boost efficiency and deliver exceptional customer service at every touchpoint with the DS8208 corded scanner. Featuring an advanced 2 MP optical system that sets a new benchmark for scan performance and a multi-function button to streamline workflows, the DS8208 provides the speed and reliability your team needs to keep transactions moving.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, MSI, MSI-Plessey, Pharmacode, Plessey, Telepen, Trioptic, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1, EAN-8, EAN-13 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, SecurPharm, TLC-39 |
| Optical sensor resolution (W x H) | 1600 x 1200 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 36° |
| Light levels (direct sunlight) | 0 - 107.6 lx |
| Pitch reading angle | 0 - 60° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | RS-232, USB |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP52 |
|---|---|
| Ambient lighting | Yes |
| Print contrast | 16% |
| Product colour | Black |
| Power source type | DC |
|---|---|
| Battery type | Built-in battery |
| Charging port type | USB Type-C |
| Battery life | 108 h |
| Charging time | 6.7 h |
| Weight | 176.5 g |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Drop resistance | 3 m |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 3500 mAh |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
