ZEBRA

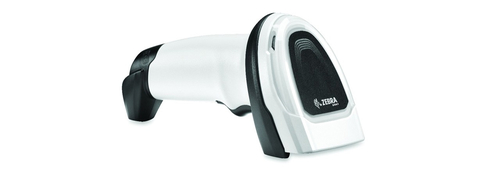

Zebra DS8178 Handheld bar code reader 1D/2D Photo diode White

Part number DS8178-SR0F006ZMWW

DS8178 AREA IMGR STD RANGE CORDLESS FIPS NOVA WHITE MFI

  • Handheld bar code reader White
  • Scanner type: 1D/2D Sensor type: Photo diode
  • 1280 x 960 pixels
  • Working distance: 61 cm
  • Tilt reading angle: 0 - 360°
  • Wireless
  • Power source type: Battery Lithium-Ion (Li-Ion) 2500 mAh
Manufacturer
ZEBRA
Part number
DS8178-SR0F006ZMWW
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

The ultimate in performance, innovation and manageability

The checkout stand is the last chance you have to leave shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. Now, you can leave every shopper with the ultimate last impression with the DS8100 Series handheld imager.

The DS8100 Series rises above conventional imagers to deliver unprecedented scanning performance on virtually every 1D and 2D barcode, keeping your checkout lines moving and your cashiers free to deliver a more personal checkout experience. The DS8100 Series — because when it comes to the checkout experience in your store, only the best will do.

Unprecedented performance

Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes and electronic barcodes on smartphones — even when the screen is dimly lit.

Innovation beyond the barcode

A wide range of innovations allows workers to do much more than scan barcodes one at a time. Workers can simultaneously capture multiple barcodes and transmit only those required in the proper directly to your application. Only the DS8100 Series can capture the information on a full 8.5 x 11 or A4 page, process the desired information into the right format for electronic storage and transmit the data to your applications — all with one press of the trigger. And support for Digimarc*© barcodes provides future-proofing, ensuring that the DS8100 Series you deploy today can support the barcodes of tomorrow.

Unrivaled manageability

Our complimentary tools deliver unrivaled manageability. With visionary visibility into scanning performance and battery metrics, you can spot and correct issues before they impact device uptime, worker productivity and the quality of your customer service. You can control many aspects of your scanners from any Android, iOS and Windows smartphone or tablet, as well as any iOS or Windows PC. You can create a single configuration barcode to customize settings. And you can stage, configure and update firmware on all your DS8100 devices in all of your locations — no user actions required.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Sensor typePhoto diode
Optical sensor resolution (W x H)1280 x 960 pixels
Working distance61 cm
Wavelength617 nm
Tilt reading angle0 - 360°
Pitch reading angle-60 - 60°
Yaw reading angle-60 - 60°
Ports & interfaces
Connectivity technologyWireless
Wireless range100 m
Bluetooth version4.0
Performance
International Protection (IP) codeIP42
Product colourWhite
Power
Power source typeBattery
Battery life83 h
Weight & dimensions
Width66 mm
Depth107 mm
Height168 mm
Weight235.3 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity2500 mAh
Logistics data
Harmonized System (HS) code84716070

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
