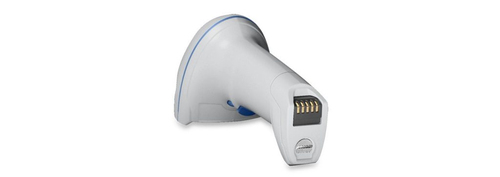

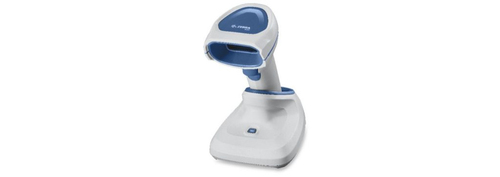

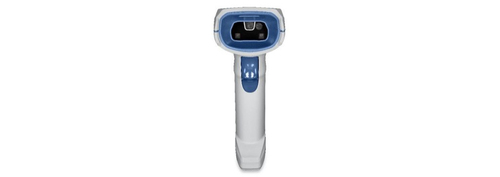

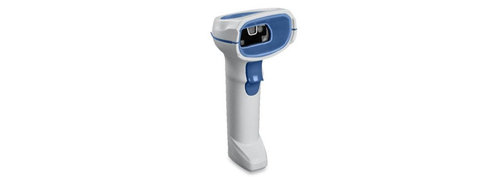

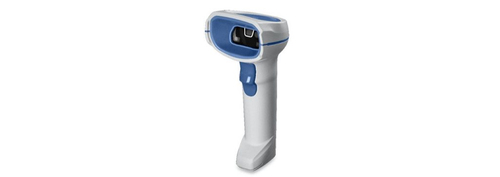

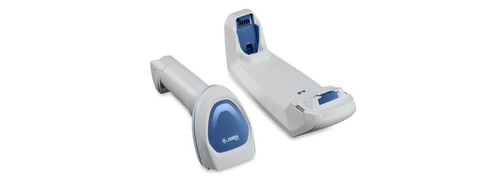

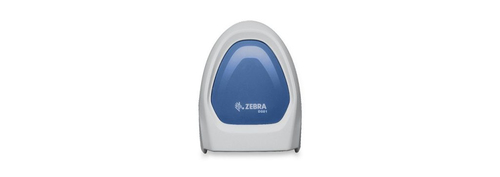

Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
Part number DS8178-HCBU210SS5W
DS8178-HC FIPS DESK/WALL USB KIT SCANNER W/ POWERCAP
- Handheld bar code reader White
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Tilt reading angle: 0 - 360°
- Wired & Wireless Standard interfaces: Keyboard wedge, RS-232, USB
- Bluetooth Low Energy (BLE)
- Power source type: Battery Lithium-Ion (Li-Ion) 2500 mAh
- Manufacturer
- ZEBRA
- Part number
- DS8178-HCBU210SS5W
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
Better Workflows for Healthcare Professionals. Better Experiences for Patients.
As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.
This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series — only from Zebra.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 528 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP42 |
|---|---|
| Product colour | White |
| Power source type | Battery |
|---|---|
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Number of reads per charge | 65000 |
| Battery life | 83 h |
| Input voltage | 5 V |
| Width | 66 mm |
|---|---|
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 2500 mAh |
| Harmonized System (HS) code | 84716070 |
|---|
