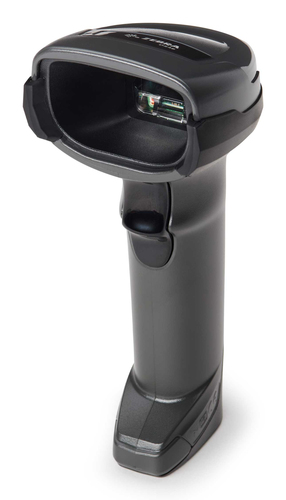

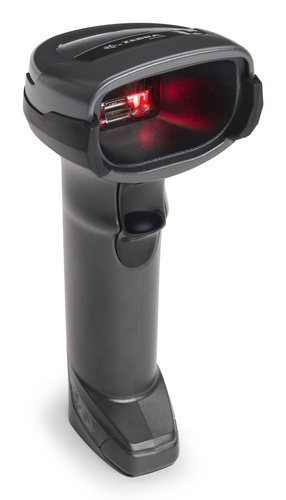

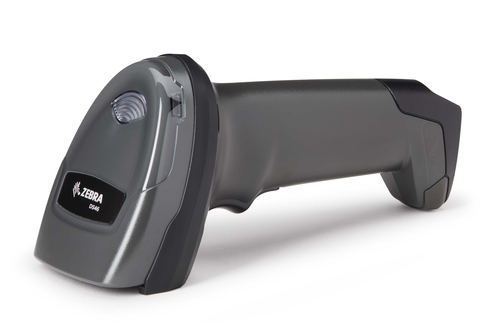

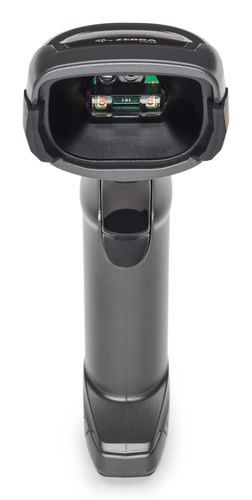

Zebra DS4678 Handheld Scanner
Part number DS4678-SR00007ZZWW
DS4678 AREA IMAGER STANDARD RANGE CORDLESS TWILIGHT BLACK
- Scan Type: 2D, 1D, OCR
- Image Sensor: 1280x800 pixels
- Scan Range: Standard Range
- Corded/Cordless: Cordless
- Battery Capacity: 13 hours (2,500 mAh)
- Manufacturer
- ZEBRA
- Part number
- DS4678-SR00007ZZWW
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
The cordless DS4678 offers the versatility and scanning performance to scan items of all sizes, read barcodes in nearly any condition and handle a wide range of transactions. Bulky items in a shopping cart, a customer’s driver’s license, a mobile coupon, tiny barcodes in the jewelry department-the DS4678 can capture them all. It delivers over 13 hours of continuous scanning on a single charge, with a compact Presentation cradle to fit any point of sale.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 31.6° |
| Vertical field of view | 22.6° |
| Light levels (direct sunlight) | 0 - 107000 lx |
| Wavelength | 660 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Connectivity technology | Wireless |
|---|---|
| Standard interfaces | Bluetooth |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP52 |
|---|---|
| LED indicators | Yes |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Product colour | Black |
| Vibration function | Yes |
| Power source type | Battery |
|---|---|
| Number of reads per charge | 50000 |
| Charging time | 2.25 h |
| Width | 66 mm |
|---|---|
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 225 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.8 m |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 2500 mAh |
| Warranty period | 3 year(s) |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
