Products › Data Capture / Point of Sale

ZEBRA

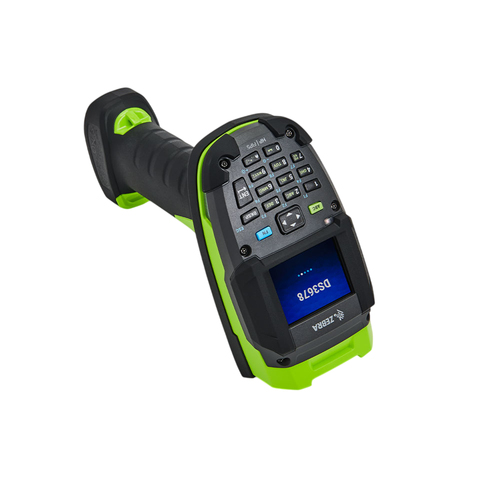

Zebra DS3678-HP Handheld bar code reader 1D/2D Laser Black, Green

Part number DS3678-HP2F223VTNA

DS3678 KEYPAD AND DISP RUGGED AREA IMGR HIGH PERFORM CORDLESS

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • Tilt reading angle: -65 - 65°
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
Manufacturer
ZEBRA
Part number
DS3678-HP2F223VTNA
Condition
New
Category
Data Capture / Point of Sale › Adc Mobile Terminals
1GPA category
Hardware

Overview

UNSTOPPABLE PERFORMANCE FOR SUPERIOR CAPTURE OF 1D/2D BARCODES, PHOTOS, DOCUMENTS AND MORE

As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HP corded and DS3678-HP cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor.

In addition to capturing virtually any 1D or 2D barcode as far as 7 ft./2.1 m away, these scanners give you the flexibility to capture a wide range of business information to streamline many everyday business processes, including OCR, documents and photos.

No matter what types of data your workers need to capture, you get all the features you need for truly unstoppable performance, redefining scanner reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE

Your workers can capture information as fast as they can pull the trigger — from virtually any electronic or printed barcode in any condition to photos that can provide undisputable proof of condition for incoming shipments, plus images of highly legible documents for electronic recordkeeping. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN

The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY

With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength655 nm
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Yaw reading angle-45 - 45°
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesRS-232, USB, Keyboard wedge
Wireless range100 m
Bluetooth version4.0
Bluetooth Low Energy (BLE)Yes
Ethernet LANYes
Performance
International Protection (IP) codeIP67
Protection featuresDust resistant, Shock resistant, Water resistant
LED indicatorsYes
Product colourBlack, Green
Programming functionYes
Power
Power source typeBattery
Number of reads per charge100000
Weight & dimensions
Width142 mm
Depth76 mm
Height185 mm
Weight411 g
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3100 mAh
Technical details
Compliance certificatesRoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
