Products › Data Capture / Point of Sale

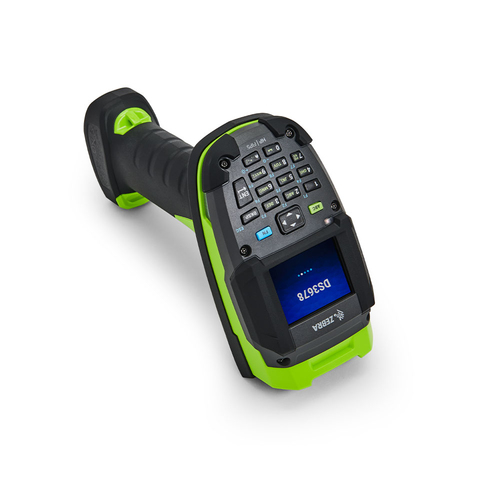

Zebra DS3678-HP Handheld bar code reader 1D/2D Laser Black, Green
Part number DS3678-HP2F003VKWW
DS3678 KEYPAD AND DISP RUGGED IMAGER HP CORDLESS FIPS IND GREEN
- Handheld bar code reader Black, Green
- Scanner type: 1D/2D Sensor type: Laser
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Tilt reading angle: -65 - 65°
- Wired & Wireless Standard interfaces: Keyboard wedge, RS-232, USB
- Bluetooth Low Energy (BLE)
- Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
- Manufacturer
- ZEBRA
- Part number
- DS3678-HP2F003VKWW
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
Revolutionize your operations with the Zebra DS3608-HP (corded) and DS3678-HP (cordless) ultra-rugged barcode scanners. Designed for demanding environments, these high-performance scanners capture 1D and 2D barcodes, OCR data, and images with exceptional speed and accuracy. Scan barcodes from up to 7 feet away, even on damaged or poorly printed labels.
The Zebra DS3600-HP barcode scanners rugged construction withstands harsh conditions, ensuring maximum uptime and reliability. Improve data capture efficiency, reduce errors, and enhance productivity with these versatile Zebra barcode readers. Experience lightning-fast barcode scanning, easy deployment, and superior manageability. Optimize your workflows with the Zebra DS3608-HP/DS3678-HP scanners.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP67 |
|---|---|
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power source type | Battery |
|---|---|
| Number of reads per charge | 100000 |
| Width | 142 mm |
|---|---|
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 3100 mAh |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
