Products › Data Capture / Point of Sale

ZEBRA

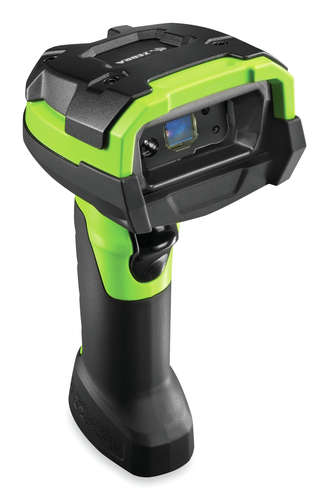

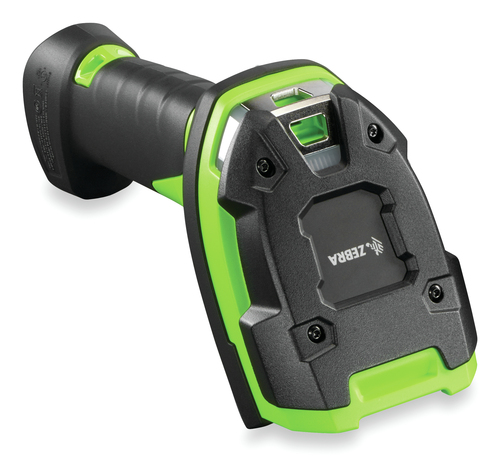

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

Part number DS3678-HD2F003VZWW

DS3678 RUGGED AREA IMGR HIGH DENS CORDLESS FIP INDUS GRN VIB MTR

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • Tilt reading angle: -65 - 65°
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
Manufacturer
ZEBRA
Part number
DS3678-HD2F003VZWW
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES

As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

SUPERIOR PERFORMANCE

You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN

The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY

With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
TypeHandheld bar code reader
Optical sensor resolution1280 pixels
Scanner type1D/2D
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength655 nm
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Yaw reading angle-45 - 45°
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesRS-232, USB, Keyboard wedge
Wireless range100 m
Bluetooth version4.0
Bluetooth Low Energy (BLE)Yes
Ethernet LANYes
Performance
International Protection (IP) codeIP67
Protection featuresDust resistant, Shock resistant, Water resistant
LED indicatorsYes
Product colourBlack, Green
Programming functionYes
Power
Power source typeBattery
Number of reads per charge100000
Weight & dimensions
Width142 mm
Depth76 mm
Height185 mm
Weight411 g
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3100 mAh
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84716070

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
