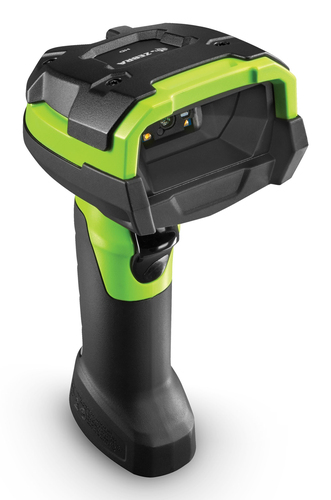

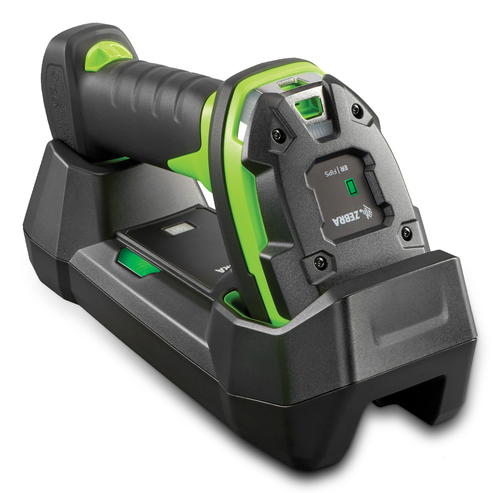

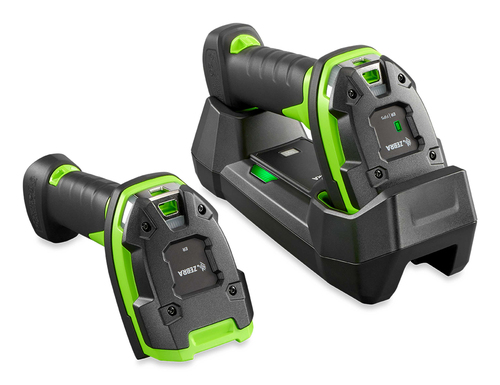

Zebra DS3678-ER Handheld bar code reader 1D/2D Laser Black, Green

Part number DS3678-ER2FCC3VTNA

DS3678 TAA RUGGED AREA IMAGER EXT RANGE CORDLESS FIPS IND GREEN

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • 1280 x 800 pixels
  • Tilt reading angle: -60 - 60°
  • Wired & Wireless Standard interfaces: Keyboard wedge, RS-232, USB
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
Manufacturer
ZEBRA
Part number
DS3678-ER2FCC3VTNA
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

DS3600-ER Ultra-Rugged Scanner

Unstoppable performance for extended range 1D/2D barcode scanning

The productivity of your warehouse and manufacturing workers depends on the quality of their scanners. The DS3600-ER Ultra-Rugged scanner enables extended range capture of 1D and 2D barcodes—nearer and farther than any scanner in this class, from 3 in./7.6 cm to 70 ft/21.4 m away. Built for your toughest environments, the DS3600-ER is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete and dual IP65/IP68 sealing. With DataCapture DNA, Zebra’s exclusive software ecosystem, you can take scanner performance far beyond the basics—simplifying every stage of the scanning experience over the life of your device. And when it comes to cordless technology, the DS3678-ER’s Zebra-only features put it in a class of its own. The DS3600-ER— the unstoppable performance you need to maximize workforce productivity and throughput in your operations.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength655 nm
Tilt reading angle-60 - 60°
Pitch reading angle-60 - 60°
Yaw reading angle-360 - 360°
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesKeyboard wedge, RS-232, USB
BluetoothYes
Performance
International Protection (IP) codeIP65, IP68
Protection featuresWater resistant
LED indicatorsYes
Print contrast25%
Product colourBlack, Green
Programming functionYes
Power
Power source typeBattery
Number of reads per charge70000
Weight & dimensions
Width132 mm
Depth76 mm
Height185 mm
Weight308 g
Packaging data
External power adapterYes
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Drop resistance2.4 m
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3100 mAh
Technical details
Compliance certificatesRoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
