Products › Data Capture / Point of Sale

ZEBRA

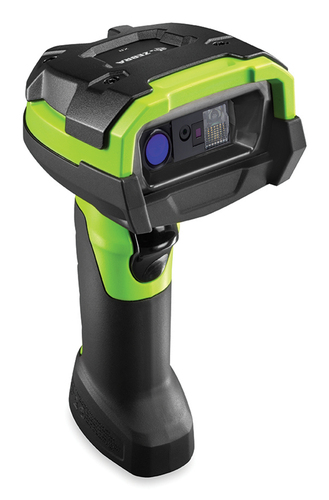

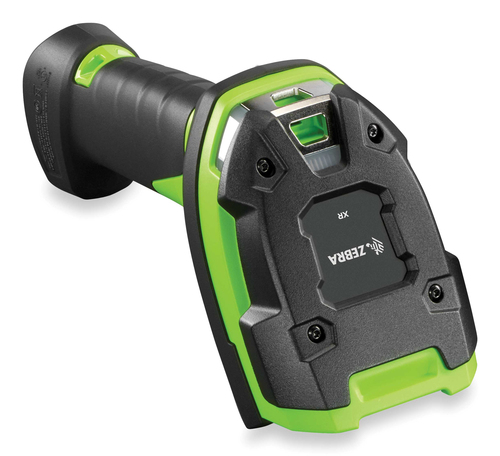

Zebra DS3608-XR Handheld bar code reader 1D/2D Laser Black, Green

Part number DS3608-XR3RF50AZVW

DS3608-XR CORDED ROCKWELL DUSTRIAL ETHERN KIT SCAN

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • 1280 x 800 pixels
  • Tilt reading angle: -60 - 60°
  • Wired Standard interfaces: Keyboard wedge, RS-232, USB
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
Manufacturer
ZEBRA
Part number
DS3608-XR3RF50AZVW
Condition
New
Category
Data Capture / Point of Sale › Barcode Scanners
1GPA category
Hardware

Overview

DS3600-XR Ultra-Rugged Scanner

Unstoppable performance now with the industry’s longest scanning range

When tasks get tougher, you need a scanner that’s ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.

Specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength520 nm
Tilt reading angle-60 - 60°
Pitch reading angle-60 - 60°
Yaw reading angle-360 - 360°
Ports & interfaces
Connectivity technologyWired
Standard interfacesKeyboard wedge, RS-232, USB
Ethernet LANYes
Performance
International Protection (IP) codeIP67
Protection featuresWater resistant
LED indicatorsYes
Print contrast25%
Product colourBlack, Green
Programming functionYes
Power
Power source typeBattery
Weight & dimensions
Width132 mm
Depth76 mm
Height185 mm
Weight308 g
Packaging data
External power adapterYes
Operational conditions
Operating temperature (T-T)-30 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Drop resistance2.4 m
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3100 mAh
Technical details
Compliance certificatesRoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
