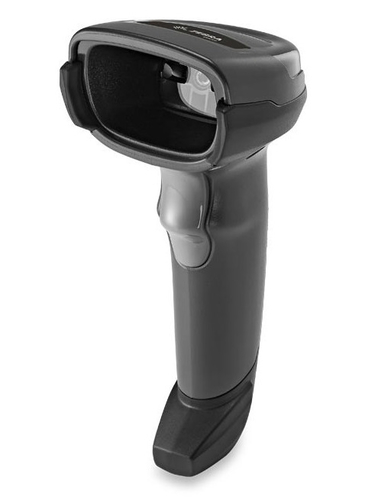

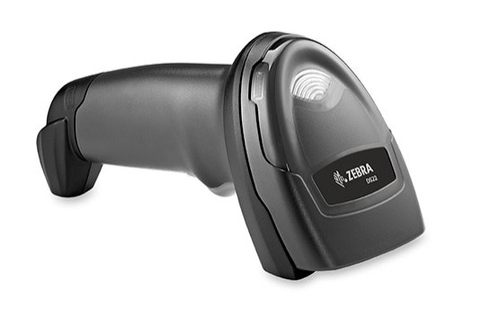

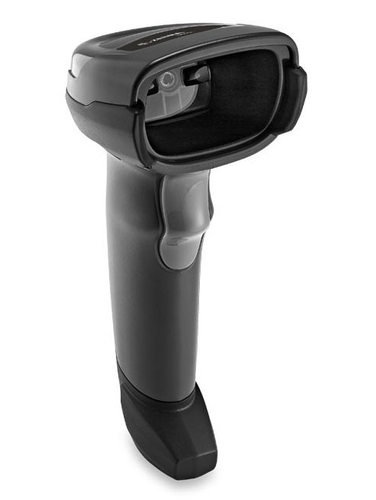

Zebra DS2208 Handheld bar code reader 1D/2D LED Black
Part number DS2208-SR7U2100AZW
DS2208-SR BLACK USB KIT DS2208-SR00007ZZWW SCANNER
- Handheld bar code reader Black
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
- 640 x 480 pixels
- Working distance: 36.8 cm
- Tilt reading angle: -65 - 65°
- Wired Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
- Power source type: DC
- Manufacturer
- ZEBRA
- Part number
- DS2208-SR7U2100AZW
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Connectivity technology | Wired |
|---|---|
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| International Protection (IP) code | IP42 |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Power source type | DC |
|---|---|
| AC adapter output voltage | 5 V |
| Power consumption | 250 mA |
| Width | 66 mm |
|---|---|
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Cables included | Micro-USB |
|---|---|
| Charging base | No |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
