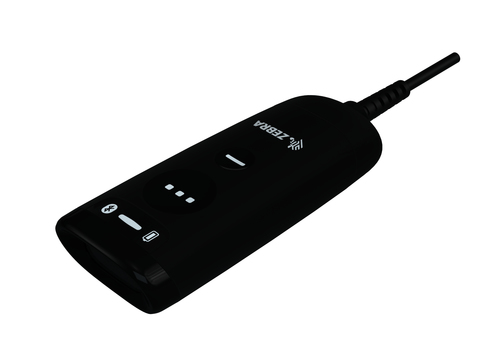

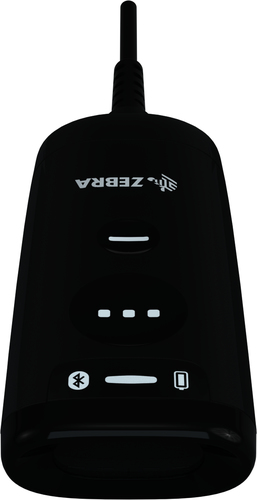

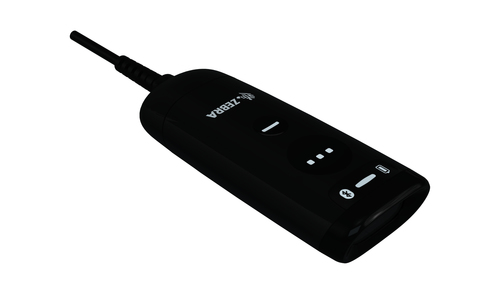

Zebra CS60 Handheld bar code reader 1D/2D LED Black
Part number CS6080-SR40000KSVW
CS6080-SR BLK CORDED W/STD KIT CS6080-SRK0004VZWW STND-GS0060C-04
- Handheld bar code reader Black
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- 1280 x 960 pixels
- Tilt reading angle: -60 - 60°
- Wireless Standard interfaces: Bluetooth, USB
- Bluetooth Low Energy (BLE)
- Power source type: AC, DC, USB
- Manufacturer
- ZEBRA
- Part number
- CS6080-SR40000KSVW
- Condition
- New
- Category
- Data Capture / Point of Sale › Barcode Scanners
- 1GPA category
- Hardware
Overview
ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.
EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.
Specifications
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 525 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
| Connectivity technology | Wireless |
|---|---|
| Standard interfaces | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP65 |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Power source type | AC, DC, USB |
|---|---|
| Number of reads per charge | 13000 |
| Power consumption | 400 mA |
| Width | 46 mm |
|---|---|
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 56 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
