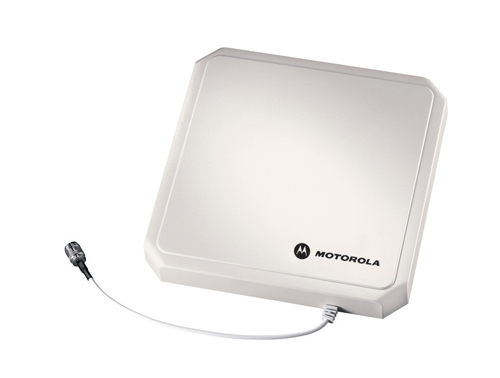

Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi
Part number AN480-CR66100WR
ANTENNA/ 1 PORT WIDE BAND RIGHT
- Directional antenna N-type White
- 6 dBi
- 50 Ω
- Manufacturer
- ZEBRA
- Part number
- AN480-CR66100WR
- Condition
- New
- Category
- Data Capture / Point of Sale › WRLS ADC Accessories
- 1GPA category
- Hardware
Overview
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.
The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.
Specifications
| Impedance | 50 Ω |
|---|---|
| Horizontal beam width | 65° |
| Vertical beam width | 65° |
| Antenna gain level (max) | 6 dBi |
| Antenna type | Directional antenna |
|---|---|
| Antenna connector type | N-type |
| Voltage Standing Wave Ratio (VSWR) | 1.22:1 |
| Product colour | White |
| Power handling | 2 W |
| Purpose | Outdoor |
| Certification | RoHS, UL |
|---|
| Width | 259.1 mm |
|---|---|
| Depth | 259.1 mm |
| Height | 50.3 mm |
| Weight | 1.13 kg |
| Harmonized System (HS) code | 85177100 |
|---|
| Frequency range | 865 - 868 MHz |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
