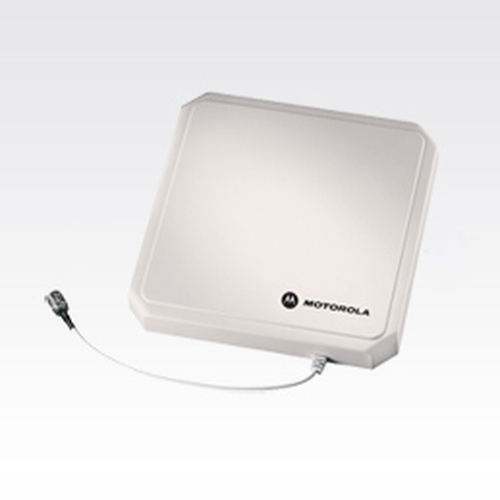

Motorola AN480-CL66100WR network antenna N-type 6 dBi
Part number AN480-CL66100WR
ANT 1PORT WBNDLFT/PIGTAIL/ROHS LEFT HAND CIRCULAR POLARIZATION.
- N-type White
- 6 dBi
- 50 Ω
- Horizontal polarization
- Wall
- Manufacturer
- ZEBRA
- Part number
- AN480-CL66100WR
- Condition
- New
- Category
- Data Capture / Point of Sale › WRLS ADC Accessories
- 1GPA category
- Hardware
Overview
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving application
The AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.
Specifications
| Impedance | 50 Ω |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | N-type |
|---|---|
| Polarization | Horizontal polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.22:1 |
| Product colour | White |
| Power handling | 2 W |
| Mounting | Wall |
| Compliance certificates | RoHS |
|---|---|
| Certification | IP 54 IEC-68 UL-746C |
| Width | 259.1 mm |
|---|---|
| Depth | 258.1 mm |
| Height | 50.3 mm |
| Weight | 1.13 kg |
| Harmonized System (HS) code | 85177100 |
|---|
| Frequency range | 865-868 MHz |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
