Overview

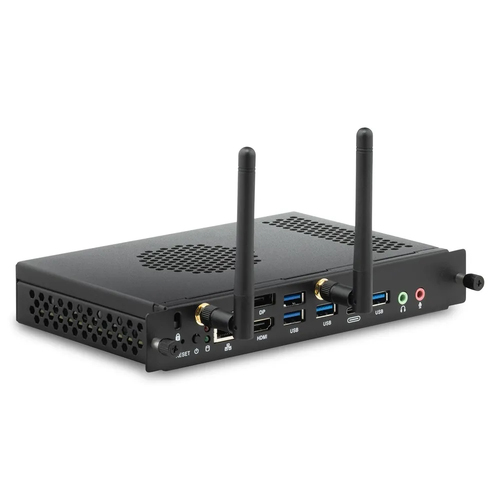

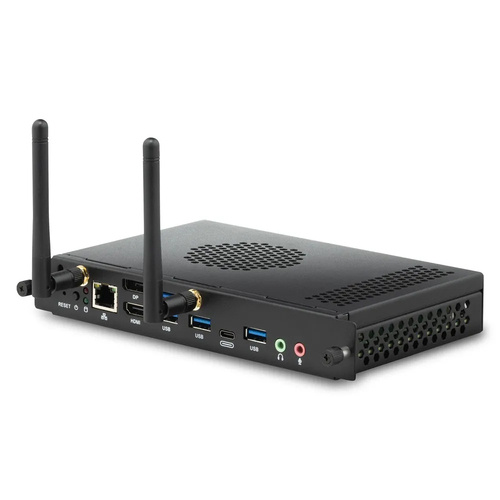

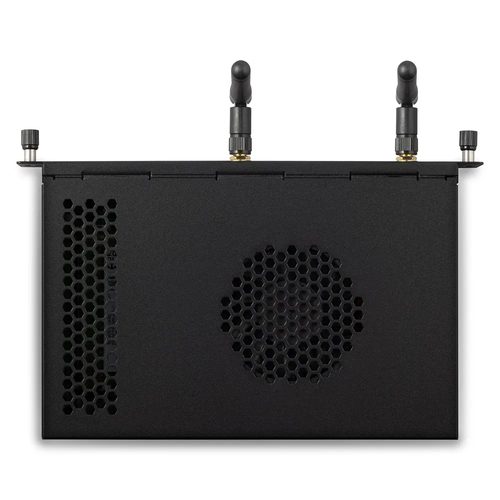

The ViewSonic® VPC35-W55-G1 Windows slot-in PC delivers a full Windows experience for users of ViewSonic ViewBoard® interactive displays. This slot-in PC module easily plugs into compatible displays and supports up to 5K resolution. With a powerful Intel® i5 processor, and fast SSD, the VPC35-W55-G1 provides the computing power needed for fast-moving educational or corporate environments. Flexible connectivity options include HDMI, USB 3.0 and Type-C ports, as well as Giga LAN RJ45 and integrated Wi-Fi 6 connection.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i5 |
|---|
| Processor generation | 12th gen Intel® Core™ i5 |
|---|
| Processor model | i5-1240P |
|---|
| Processor cores | 12 |
|---|
| Processor threads | 16 |
|---|
| Processor boost frequency | 4.4 GHz |
|---|
| Performance cores | 4 |
|---|
| Efficient cores | 8 |
|---|
| Performance-core Max Turbo Frequency | 4.4 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.3 GHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 28 W |
|---|
| Maximum turbo power | 64 W |
|---|
Memory
| Internal memory | 16 GB |
|---|
Storage
| Total storage capacity | 512 GB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 512 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 512 GB |
|---|
Graphics
| Discrete graphics card | No |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card model | Intel Iris Xe Graphics |
|---|
Performance
| Product type | Mini PC |
|---|
Network
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.1 |
|---|

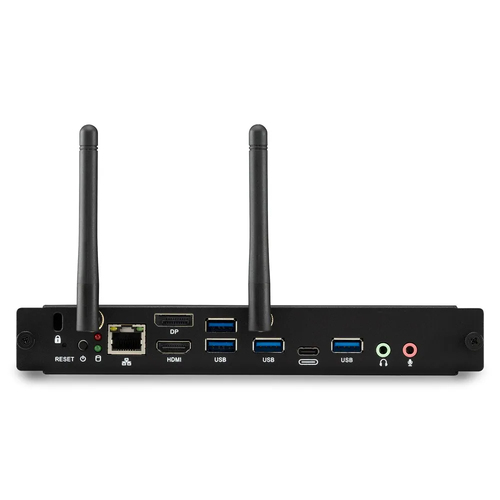

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Headphone outputs | 1 |
|---|
| Microphone in | Yes |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | Slot-in PC |
|---|
| Product colour | Black |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Display
| Display included | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
Weight & dimensions
| Width | 202 mm |
|---|
| Depth | 122.6 mm |
|---|
| Height | 30 mm |
|---|
| Weight | 600 g |
|---|
Packaging data
| Package width | 267 mm |
|---|
| Package depth | 192 mm |
|---|
| Package height | 72 mm |
|---|
| Package weight | 970 g |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
