Overview

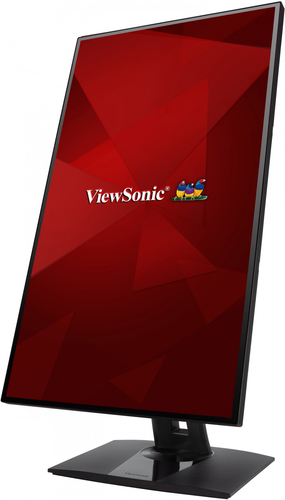

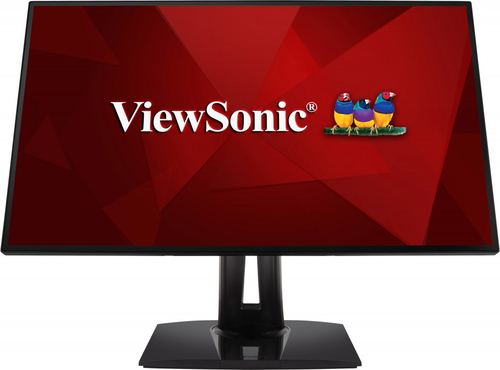

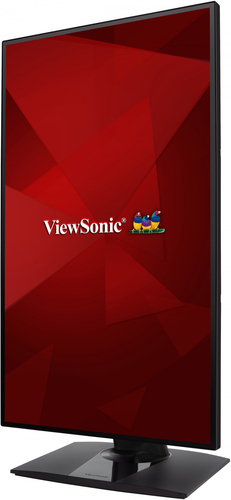

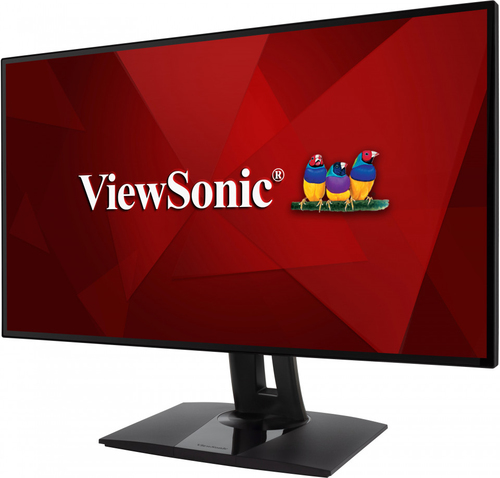

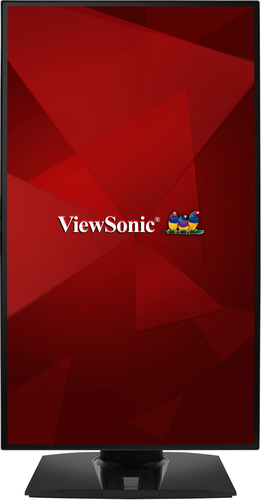

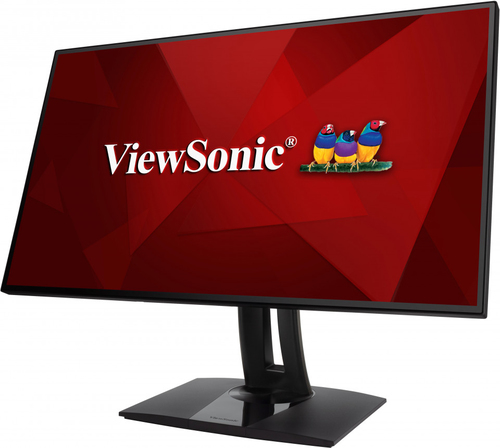

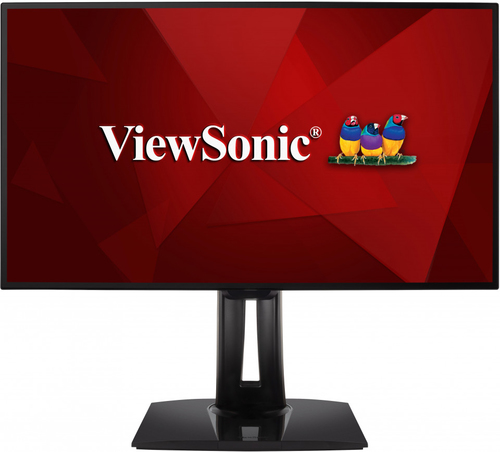

The ViewSonic® VP2768a is a 27’’ Quad HD monitor that delivers color accuracy crucial for professional applications. With a sleek frameless design and edge-to-edge SuperClear® IPS panel, this monitor provides an incredible viewing experience ideal for content creation and enterprise workstations. USB-C connectivity helps to simply your workspace by delivering audio, video, data and up to 90W of power delivery over a single universal cable. In addition, DisplayPort out enables seamless daisy chaining to a second monitor. To ensure precise, uniform color, each of our monitors is factory calibrated to deliver an amazing Delta E
Specifications
Display
| Display diagonal | 68.6 cm (27") |
|---|
| Display resolution | 2560 x 1440 pixels |
|---|
| HD type | Quad HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LED |
|---|
| Panel type | IPS |
|---|
| Touchscreen | No |
|---|
| Display brightness (typical) | 350 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Display surface | Matt |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Contrast ratio (dynamic) | 20000000:1 |
|---|
| Maximum refresh rate | 75 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 16.7 million colours |
|---|
| Pixel pitch | 0.233 x 0.233 mm |
|---|
| Horizontal scan range | 15 - 90 kHz |
|---|
| Vertical scan range | 24 - 75 Hz |
|---|
| Surface hardness | 3H |
|---|
| Colour depth | 8 bit |
|---|
Performance
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
Multimedia
| Built-in speaker(s) | No |
|---|
| Built-in camera | No |
|---|
Design
| Market positioning | Graphics design |
|---|
| Product colour | Black |
|---|
| Frameless design | Yes |
|---|
| Detachable stand | Yes |
|---|
| Feet colour | Black |
|---|
Ports & interfaces
| I/O ports | RJ45 |
|---|
| Built-in USB hub | Yes |
|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB upstream port type | USB Type-B, USB Type-C |
|---|
| Number of upstream ports | 2 |
|---|
| Number of USB Type-B upstream ports quantity | 1 |
|---|
| Number of USB Type-C upstream ports quantity | 1 |
|---|
| USB Type-A downstream ports quantity | 2 |
|---|
| DVI port | No |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4 |
|---|
| Audio input | No |
|---|
| Headphone out | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| HDCP | Yes |
|---|
| AC (power) in | Yes |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Height adjustment | Yes |
|---|
| Adjustable height (max) | 13 cm |
|---|
| Pivot | Yes |
|---|
| Pivot angle | 0 - 180° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | 0 - 120° |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -5 - 21° |
|---|
| On Screen Display (OSD) | Yes |
|---|
| Number of OSD languages | 14 |
|---|
| Plug and Play | Yes |
|---|
Power
| Energy efficiency class (SDR) | E |
|---|
| Energy efficiency class (HDR) | Not available |
|---|
| Energy consumption (SDR) per 1000 hours | 21 kWh |
|---|
| Power consumption (typical) | 20.29 W |
|---|
| Power consumption (standby) | 0.4 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (PowerSave) | 17.36 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power supply type | Internal |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 90% |
|---|
Weight & dimensions
| Width (with stand) | 613 mm |
|---|
| Depth (with stand) | 215 mm |
|---|
| Height (with stand) | 541 mm |
|---|
| Weight (with stand) | 7 kg |
|---|
| Width (without stand) | 613 mm |
|---|
| Depth (without stand) | 50 mm |
|---|
| Height (without stand) | 353 mm |
|---|
| Weight (without stand) | 4.7 kg |
|---|
Packaging data
| Package width | 740 mm |
|---|
| Package depth | 220 mm |
|---|
| Package height | 417 mm |
|---|
| Package weight | 10.1 kg |
|---|
| Package type | Box |
|---|
Packaging content
| Stand included | Yes |
|---|
| Cables included | AC, DisplayPort, USB, USB Type-C |
|---|
| Quick start guide | Yes |
|---|
Other features
| Country of origin | China |
|---|
| Weight | 7 kg |
|---|
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy |
|---|
Technical details
| Native refresh rate | 60 Hz |
|---|
Logistics data
| Products per master (outer) case | 1 pc(s) |
|---|
| Pallet gross width | 120 cm |
|---|
| Pallet gross length | 100 cm |
|---|
| Pallet gross height | 2.21 m |
|---|
| Harmonized System (HS) code | 8528521000 |
|---|
