Overview
Designed for Surface (DfS) products must meet the rigorous standards of Microsoft to ensure optimal compatibility with Microsoft Surface products.* The ViewSonic® VG275 monitor is compatible with all USB-C Surface devices and is ideal for office and home use. USB-C connectivity offers convenient charging power, video and audio over a single cable, and will charge your Surface device without the need for an additional power cable. Along with USB-C, additional connectivity options include HDMI, DisplayPort, VGA, and a USB hub. This 27” monitor also includes an advanced ergonomic design that features height adjustment, pivot, swivel and tilt for maximum comfort and enhanced productivity. This monitor is shipped in eco-friendly biodegradable packaging, along with an easy-to-install quick release stand that makes for simple out-of-the box setup. The quick release stand also includes an integrated client mount and cable management features. *Microsoft, Microsoft Surface, Designed for Surface are trademarks of the Microsoft group of companies.
Specifications
Display
| Display diagonal | 68.6 cm (27") |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| HD type | Full HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LED |
|---|
| Panel type | IPS |
|---|
| Touchscreen | No |
|---|
| Display brightness (typical) | 250 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Contrast ratio (dynamic) | 50000000:1 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 16.7 million colours |
|---|
| Horizontal scan range | 15 - 82 kHz |
|---|
| Vertical scan range | 24 - 75 Hz |
|---|
| Haze rate | 25% |
|---|
| Surface hardness | 3H |
|---|
| Colour depth | 6 bit |
|---|
Multimedia
| Number of speakers | 2 |
|---|
| RMS rated power | 2 W |
|---|
| Built-in speaker(s) | Yes |
|---|
Design
| Product colour | Black |
|---|
Ports & interfaces
| Built-in USB hub | Yes |
|---|
| Number of USB Type-B upstream ports quantity | 1 |
|---|
| Number of USB Type-C upstream ports quantity | 1 |
|---|
| USB Type-A downstream ports quantity | 3 |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 60 W |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 1.4 |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Cable management | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Height adjustment | Yes |
|---|
| Adjustable height (max) | 13 cm |
|---|

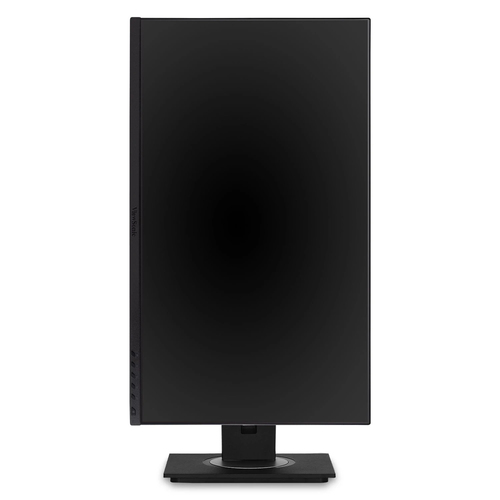

| Pivot | Yes |
|---|
| Pivot angle | 90 - 90° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | 0 - 120° |
|---|
| Tilt angle range | 5 - 40° |
|---|
| On Screen Display (OSD) | Yes |
|---|
Power
| Power consumption (typical) | 20.7 W |
|---|
| Power consumption (standby) | 0.3 W |
|---|
| Power consumption (max) | 45.8 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 90% |
|---|
Weight & dimensions
| Width (with stand) | 612 mm |
|---|
| Depth (with stand) | 202 mm |
|---|
| Height (with stand) | 533.2 mm |
|---|
| Weight (with stand) | 7.3 kg |
|---|
| Width (without stand) | 612 mm |
|---|
| Depth (without stand) | 52 mm |
|---|
| Height (without stand) | 362 mm |
|---|
| Weight (without stand) | 5.1 kg |
|---|
Packaging data
| Package width | 692 mm |
|---|
| Package depth | 218 mm |
|---|
| Package height | 430 mm |
|---|
| Package weight | 10.5 kg |
|---|
Packaging content
| Stand included | Yes |
|---|
| Cables included | AC, HDMI, USB Type-A to USB Type-B, USB Type-C |
|---|
| Quick start guide | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
