Viewsonic VA1655 computer monitor 40.6 cm (16") 1920 x 1080 pixels Full HD LED Black
Part number VA1655
15.6IN PORTABLE IPS MONITOR, 1920X1080 RESOLUTION, MOBILE ERGONOMICS, USB-C, HDM
- Easily extend your content from laptops and mobile devices
- USB-C one-cable solution for audiovisual and power signal transmission
- Flexible display setup – work at any angle
- Compact size, light weight, and highly portable
- Endurable one-piece design
- Manufacturer
- ViewSonic
- Part number
- VA1655
- Condition
- New
- Category
- Displays › Computer Monitors
- 1GPA category
- Hardware
Overview
The ViewSonic VA1655 is a portable 16” Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable stand and pivot-able display will support your working angles.
Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Anywhere with Laptops, Tablets, and Phones
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.
*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

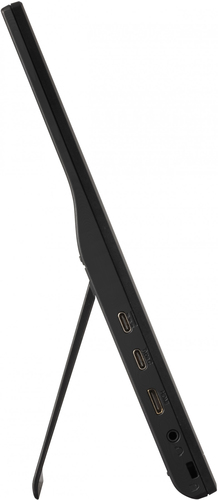

Flexible Setup with USB Type C and mini HDMI
Portable Size for Work & Fun
Larger, 16” display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

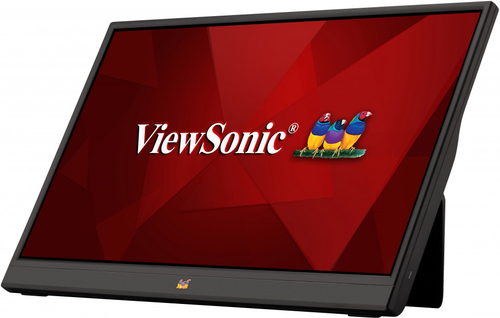

Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display
One-piece Design
With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.
Specifications
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 250 cd/m² |
| Response time | 7 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Digital horizontal frequency | 15 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 64% |
| NTSC coverage (typical) | 45% |
| Number of speakers | 2 |
|---|---|
| RMS rated power | 0.8 W |
| Built-in speaker(s) | Yes |
| Market positioning | Business |
|---|---|
| Product colour | Black |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|---|
| USB upstream port type | USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Mini HDMI ports quantity | 1 |
| Audio output | 1 x 3.5 mm |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Pivot | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 30 - 53° |
| Energy efficiency class (SDR) | C |
|---|---|
| Energy consumption (SDR) per 1000 hours | 7 kWh |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 7.3 W |
| Power supply type | AC |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Width (with stand) | 359 mm |
|---|---|
| Depth (with stand) | 17 mm |
| Height (with stand) | 277 mm |
| Weight (with stand) | 700 g |
| Width (without stand) | 359 mm |
| Depth (without stand) | 17 mm |
| Height (without stand) | 227 mm |
| Weight (without stand) | 700 g |
| Package width | 434 mm |
|---|---|
| Package depth | 88 mm |
| Package height | 391 mm |
| Package weight | 1.7 kg |
| Cables included | USB Type-C |
|---|
| Compatible operating systems | Windows 10 certified macOS tested |
|---|---|
| Weight | 700 g |
| Compliance certificates | REACH, RoHS |
| Products per master (outer) case | 1 pc(s) |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.16 m |
| Harmonized System (HS) code | 8528521000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
