Viewsonic TD2230 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Part number TD2230
22 FULL HD 1080P 10 POINT TOUCH MONITOR, FRAMELESS SUPERCLEAR IPS TECHNOLOGY WIT
- 54.6 cm (21.5") Black
- Built-in speaker(s)
- USB upstream port type: USB Type-B HDMI HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.2
- Screen shape: Flat
- Maximum refresh rate: 76 Hz Response time: 5 ms
- 1920 x 1080 pixels Full HD Panel type: ADS
- Energy efficiency class (SDR): E EPEAT Bronze, ErP CE, REACH, RoHS
- Manufacturer
- ViewSonic
- Part number
- TD2230
- Condition
- New
- Category
- Displays › Computer Monitors
- 1GPA category
- Hardware
Overview
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

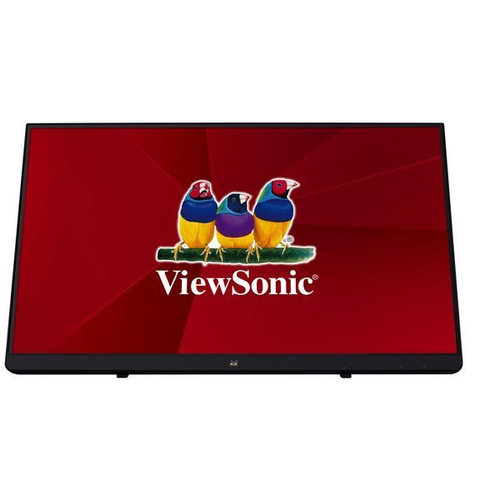

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

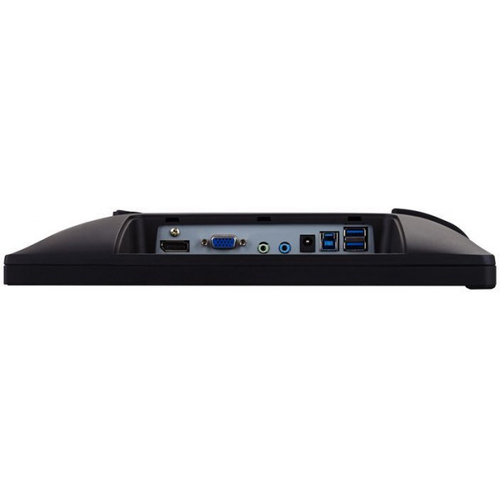

Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

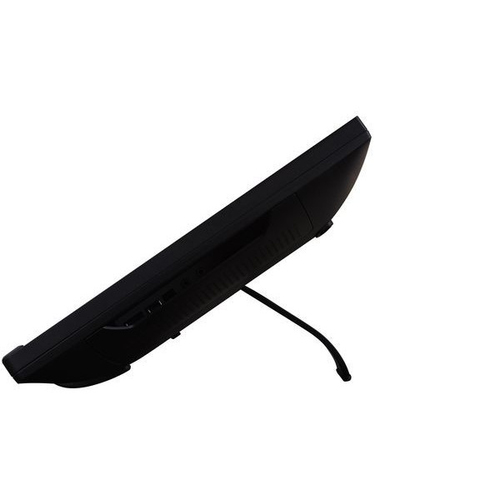

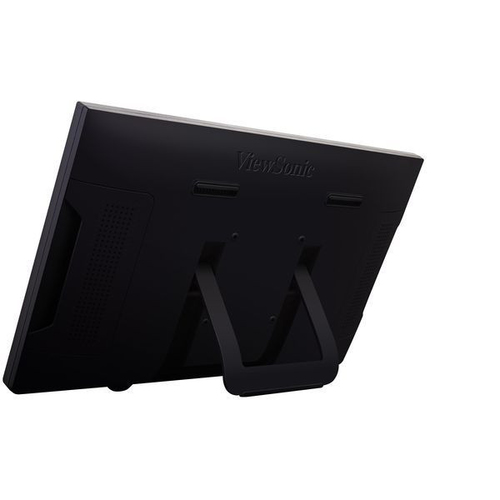

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Specifications
| Display diagonal | 54.6 cm (21.5") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | ADS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 76 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 76 Hz |
| Display diagonal (metric) | 54.6 cm |
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Number of speakers | 2 |
|---|---|
| RMS rated power | 6 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Product colour | Black |
|---|
| Built-in USB hub | Yes |
|---|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | 1 |
| Audio output | 1 |
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 20 - 70° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| Energy efficiency class (SDR) | E |
|---|---|
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width (with stand) | 490 mm |
|---|---|
| Depth (with stand) | 47 mm |
| Height (with stand) | 299 mm |
| Weight (with stand) | 3.58 kg |
| Package width | 550 mm |
|---|---|
| Package depth | 114 mm |
| Package height | 371 mm |
| Package weight | 4.7 kg |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
|---|
| Sustainability certificates | EPEAT Bronze, ErP |
|---|
| Display viewable area (HxV) | 476.64 x 268.11 mm |
|---|---|
| Weight | 3.6 kg |
| Compliance certificates | CE, REACH, RoHS |
| Certification | cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Native refresh rate | 60 Hz |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 197.5 cm |
| Harmonized System (HS) code | 8528521000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
