Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Part number TD2223
22IN IR 10-POINT TOUCH DISPLAY 1920X1080 FULL HD
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
- Manufacturer
- ViewSonic
- Part number
- TD2223
- Condition
- New
- Category
- Displays › Touchscreen Monitors
- 1GPA category
- Hardware
Overview
The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

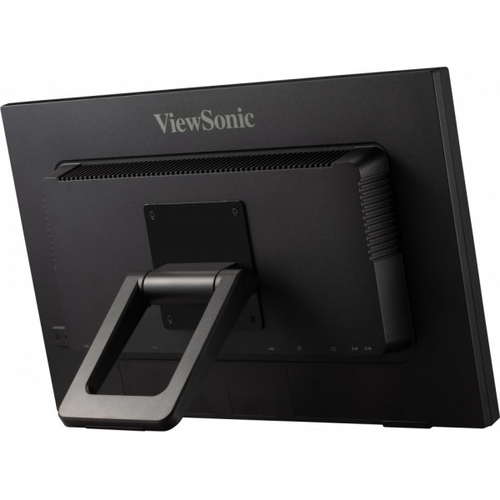

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications
| Display diagonal | 54.6 cm (21.5") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Number of speakers | 2 |
|---|---|
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Product colour | Black |
|---|---|
| Glass thickness | 2 mm |
| Built-in USB hub | Yes |
|---|---|
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Panel mounting interface | 100 x 100 mm |
|---|---|
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 22 - 38° |
| Energy efficiency class (SDR) | E |
|---|---|
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 12.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 14 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Width (with stand) | 521 mm |
|---|---|
| Depth (with stand) | 101 mm |
| Height (with stand) | 334 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 521 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 318 mm |
| Weight (without stand) | 3.9 kg |
| Package width | 580 mm |
|---|---|
| Package depth | 164 mm |
| Package height | 405 mm |
| Package weight | 6 kg |
| Stand included | Yes |
|---|---|
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Sustainability certificates | ENERGY STAR |
|---|
| Compliance certificates | REACH, RoHS |
|---|---|
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Native refresh rate | 60 Hz |
|---|
| Harmonized System (HS) code | 85285210 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
