Viewsonic TD1655 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black, Silver
Part number TD1655
15.6IN PORTABLE TOUCH DISPLAY WITH FHD 1080P RESOLUTION,2-WAY POWER WITH USB TYP
- 39.6 cm (15.6") Black, Silver
- Built-in speaker(s)
- USB upstream port type: USB Type-C
- Screen shape: Flat
- Maximum refresh rate: 60 Hz Response time: 6.5 ms
- 1920 x 1080 pixels Full HD Panel type: IPS
- Energy efficiency class (SDR): C EPEAT Bronze CE, REACH, RoHS
- Manufacturer
- ViewSonic
- Part number
- TD1655
- Condition
- New
- Category
- Displays › Computer Monitors
- 1GPA category
- Hardware
Overview
The ViewSonic® TD1655 is a portable 15.6” touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.
ULTRA-PORTABLE DESIGN
Measuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.
ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCE
An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.
2-WAY POWER WITH USB TYPE-C
Dual USB Type-C ports deliver audio, and video over a single cable. What's more, these USB Type-C ports also deliver two-way power: a connected laptop can power the monitor, or the monitor can power a connected laptop via USB-C power bank or AC adapter and outlet.
FRAMELESS DESIGN
A premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you’ll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.

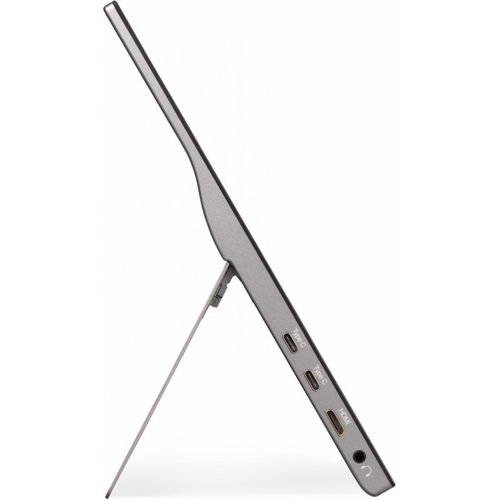

BUILT-IN STAND
A convenient built-in stand enables you to orient the screen in both portrait and landscape modes.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
ENHANCED VIEWING COMFORT
A Blue Light Filter helps to eliminate eye strain from extended viewing periods.
Specifications
| Display diagonal | 39.6 cm (15.6") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 6.5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 800:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 262144 colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 15 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display diagonal (metric) | 39.6 cm |
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Number of speakers | 2 |
|---|---|
| RMS rated power | 1.6 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Product colour | Black, Silver |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
|---|---|
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-C |
| Audio output | 1 |
| Wall mountable | No |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -20 - 60° |
| Energy efficiency class (SDR) | C |
|---|---|
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| Power consumption (typical) | 8 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width (with stand) | 355 mm |
|---|---|
| Depth (with stand) | 16 mm |
| Height (with stand) | 223 mm |
| Weight (with stand) | 1 kg |
| Package width | 440 mm |
|---|---|
| Package depth | 288 mm |
| Package height | 89 mm |
| Package weight | 2.3 kg |
| Cables included | Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
|---|
| Sustainability certificates | EPEAT Bronze |
|---|
| Display viewable area (HxV) | 344 x 194 mm |
|---|---|
| Weight | 1 kg |
| Compliance certificates | CE, REACH, RoHS |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Native refresh rate | 60 Hz |
|---|
| Products per master (outer) case | 4 pc(s) |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 196.8 cm |
| Harmonized System (HS) code | 8528521000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
