Products › Presentation Devices
ViewSonic

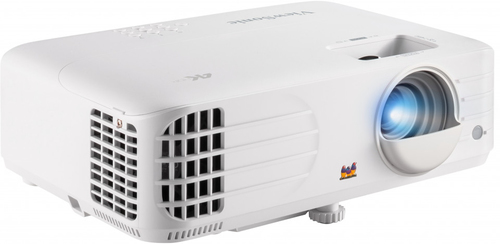

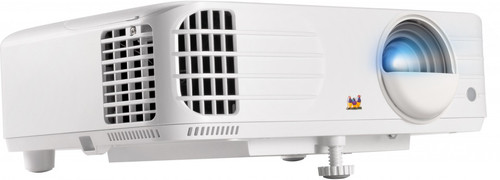

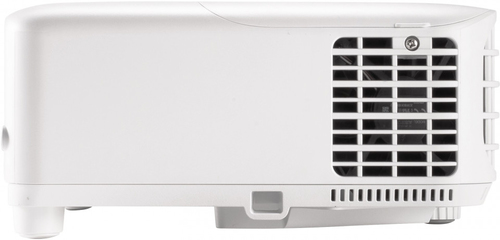

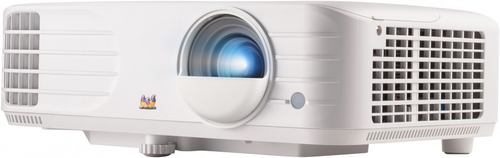

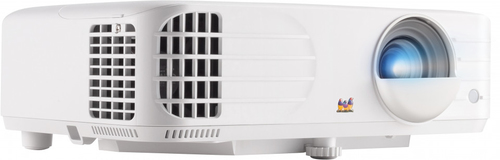

Viewsonic PX701-4K data projector Standard throw projector 3200 ANSI lumens DMD UHD 4K (3840x2160) White
Part number PX701-4K
3200ANSI LUMENS 4K HOME PROJECTOR WORLD S LOWEST 5MS INPUT
- Gaming Standard throw projector White
- DMD 3200 ANSI lumens
- Lamp 6000 h
- UHD 4K (3840x2160) 12000:1
- Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.07 billion colours
- Focus: Auto Zoom capability
- Built-in speaker(s) 10 W
- AC 290 W
- Manufacturer
- ViewSonic
- Part number
- PX701-4K
- Condition
- New
- Category
- Presentation Devices › Projectors
- 1GPA category
- Hardware
Specifications
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
|---|---|
| Projection distance | 1 - 10.96 m |
| Projector brightness | 3200 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 12000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 129 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix type | DMD |
| Light source type | Lamp |
|---|---|
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp power | 203 W |
| Focus | Auto |
|---|---|
| Focal length range | 15.843 - 17.445 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
| Throw ratio | 1.5-1.65 |
| Offset | 120% |
| Analog signal format system | NTSC, PAL, SECAM |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080i, 1080p, 2160p |

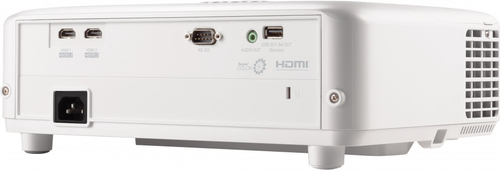

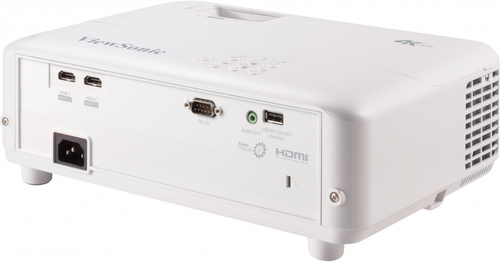

| HDMI connector type | Full-size |
|---|---|
| HDMI version | 2.0b |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
| Smart TV | No |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Card reader integrated | No |
|---|
| Noise level (economic mode) | 27 dB |
|---|---|
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
| Noise level | 31 dB |
| Separate H/V sync | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG) |
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 10 W |
| Market positioning | Gaming |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Power consumption (typical) | 290 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Width | 312 mm |
|---|---|
| Depth | 222 mm |
| Height | 108 mm |
| Weight | 2.8 kg |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 4 kg |
| Remote control included | Yes |
|---|---|
| Cables included | AC |
| Refresh rates | 240 Hz |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Pallet gross length | 83.4 cm |
| Pallet gross width | 100.8 cm |
| Pallet gross height | 190.2 cm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
