ViewSonic

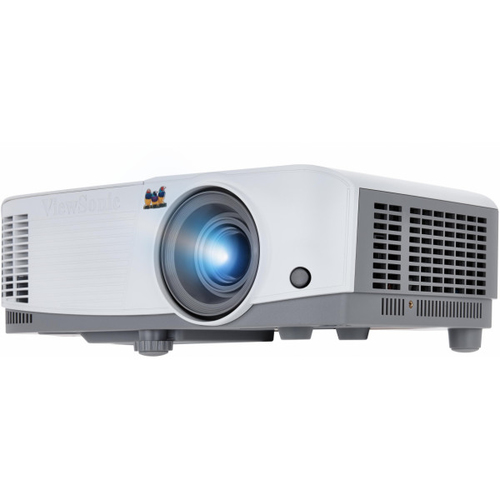

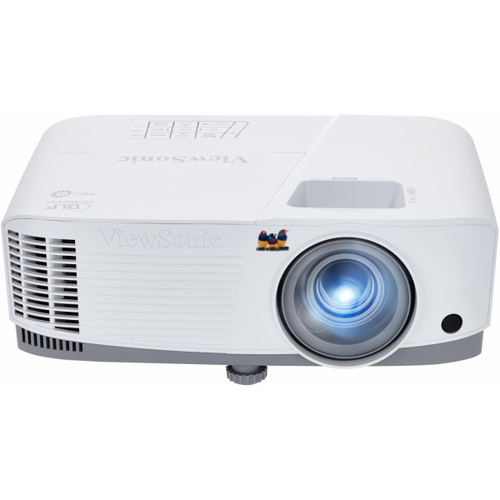

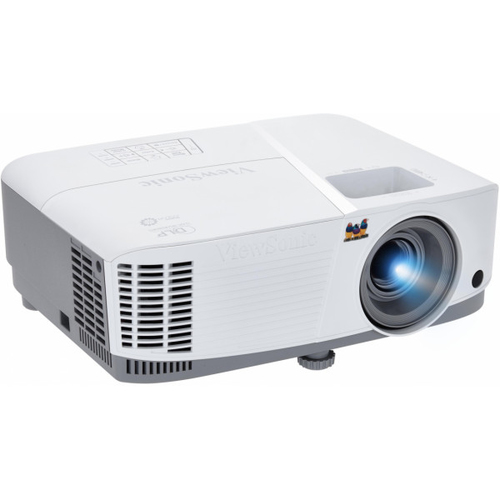

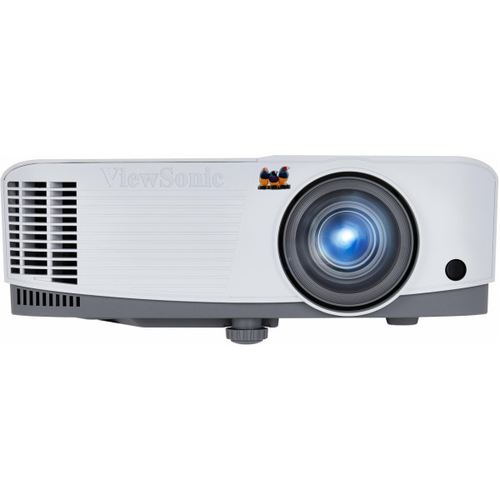

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White

Part number PA503W

WXGA DLP PROJECTOR, 1280 X 800, 4,000 LUMENS, CONNECTIVITYS INCLUDES HDMI, VGA,

Presentation Standard throw projector White
DMD 3800 ANSI lumens
Lamp 5000 h
WXGA (1280x800) 22000:1
Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.07 billion colours
Focus: Manual Zoom capability
Built-in speaker(s) 2 W
AC 260 W

Manufacturer: ViewSonic
Part number: PA503W
Condition: New
Category: Presentation Devices › Projectors
1GPA category: Hardware

Overview

Description

The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.

Specifications

Projector
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1 - 10.98 m
Projector brightness	3800 ANSI lumens
Projection technology	DMD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	22000:1
Number of colours	1.07 billion colours
Horizontal scan range	15 - 102 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, vertical	-40 - 40°
Matrix size	1.65 cm (0.65")

Light source
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	15000 h
Lamp power	200 W
Lamps quantity	1 lamp(s)

Lens system
Focus	Manual
Focal length range	22 - 24.1 mm
Aperture range (F-F)	2.56 - 2.68
Zoom capability	Yes
Zoom ratio	2.0:1
Throw ratio	1.55-1.7
Offset	100%

Video
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p

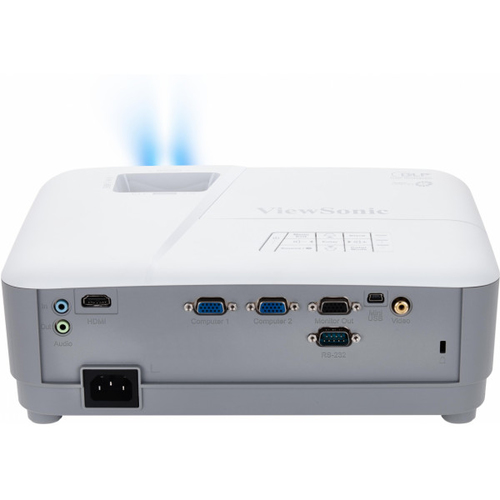

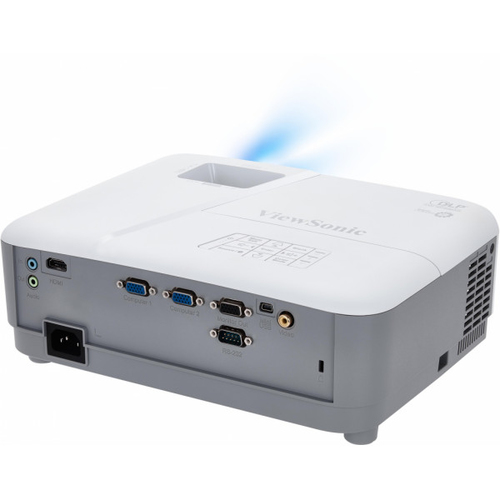

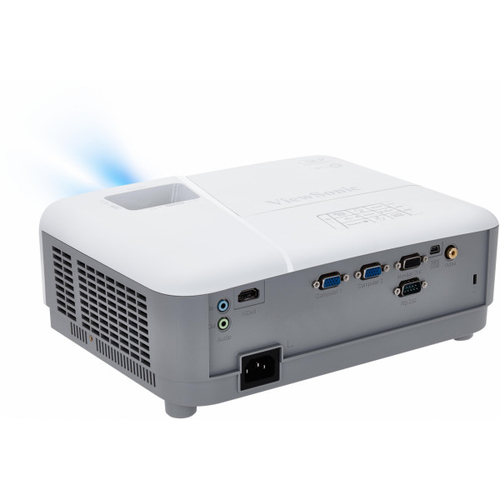

Ports & interfaces
HDMI connector type	Full-size
HDMI version	1.4
Mini-USB 2.0 ports quantity	1
Serial interface type	RS-232
PC Audio in	Yes
PC Audio out	Yes
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Composite video in	1
DVI port	No
Mobile High-Definition Link (MHL)	No
AC (power) in	Yes

Network
Smart TV	No
Ethernet LAN	No
Wi-Fi	No

Storage
Card reader integrated	No

Features
Interactive	No
Noise level (economic mode)	27 dB
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages	22
Noise level	31 dB

Multimedia
Built-in speaker(s)	Yes
RMS rated power	2 W

Design
Market positioning	Presentation
Product type	Standard throw projector
Product colour	White
Placement	Desktop, Ceiling

Display
Built-in display	No

Power
Power source	AC
Power consumption (typical)	260 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Operational conditions
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Width	294 mm
Depth	218 mm
Height	110 mm
Weight	2.22 kg
Package width	365 mm
Package depth	300 mm
Package height	188 mm
Package weight	3.24 kg

Packaging content
Remote control included	Yes
Cables included	AC, VGA
Manual	Yes

Logistics data
Pallet gross length	74 cm
Pallet gross width	90 cm
Pallet gross height	2.21 m
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
