Overview

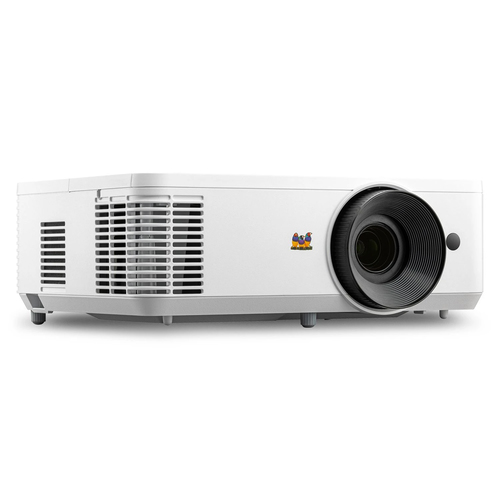

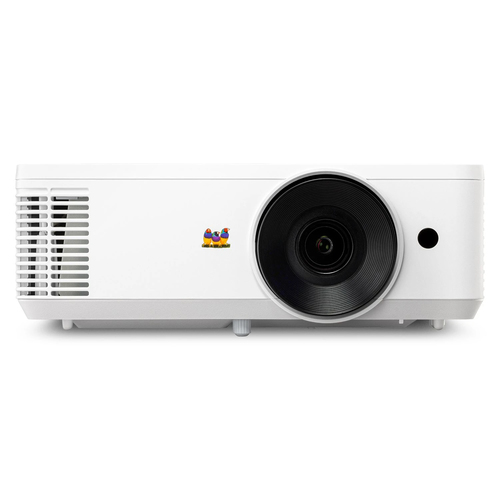

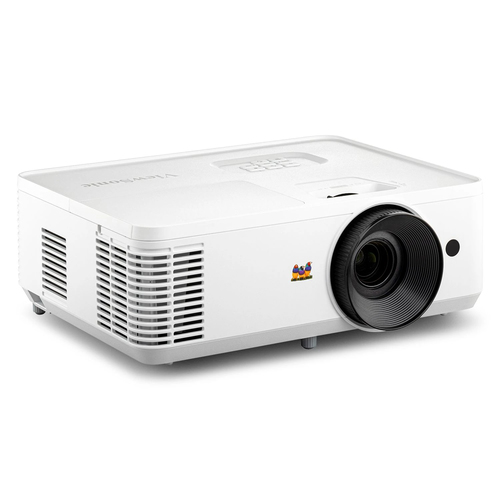

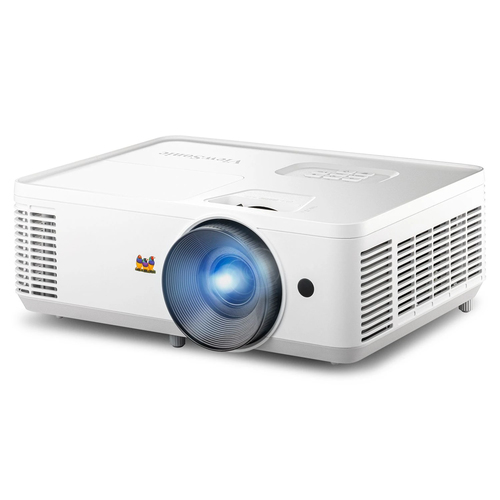

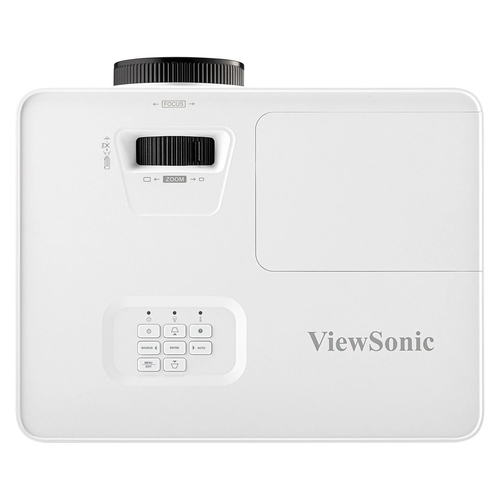

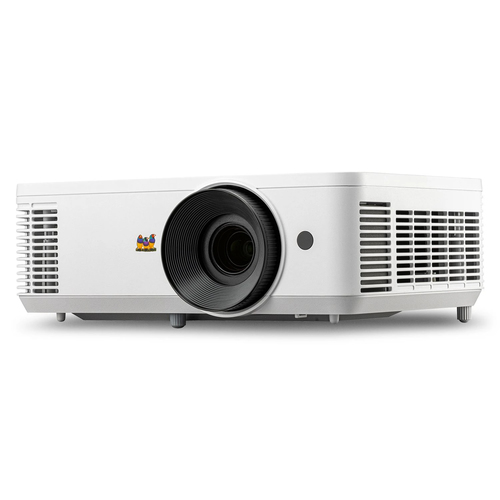

Help your best ideas look bigger and shine brighter with the ViewSonic® PA503HD projector. This state-of-the-art projector delivers up to 4,000 ANSI lumens of stunning brightness, 1080p FHD resolution and enormous images up to 300”. A .65” DMD chip enables this high-brightness projector to create multimedia images with stunning contrast for enhanced clarity. Experience versatile multimedia connectivity with dual HDMI ports as well as a USB-A output port to power wireless HDMI dongles. No matter how you set up your projector, flexible features such as auto keystone correction help ensure a picture-perfect image every single time. Plus, with a laptop and USB cable, users can enjoy hassle-free maintenance and software updates.
Specifications
Projector
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
|---|
| Projection distance | 0.76 - 7.62 m |
|---|
| Contrast ratio (dynamic) | 22000:1 |
|---|
| Projector brightness | 4000 ANSI lumens |
|---|
| Projection technology | DLP |
|---|
| Projector native resolution | 1080p (1920x1080) |
|---|
| Native aspect ratio | 16:9 |
|---|
| Number of colours | 1.07 billion colours |
|---|
| Horizontal scan range | 15 - 102 kHz |
|---|
| Vertical scan range | 23000 - 120000 Hz |
|---|
| Keystone correction, horizontal | -40 - 40° |
|---|
| Keystone correction, vertical | -40 - 40° |
|---|
| Matrix size | 1.65 cm (0.65") |
|---|
| Matrix type | DMD |
|---|
Light source
| Service life of light source | 4000 h |
|---|
| Service life of light source (economic mode) | 15000 h |
|---|
| Lamp power | 240 W |
|---|
Lens system
| Throw ratio | 1.48-1.62 |
|---|
Video
| Analog signal format system | Not supported |
|---|
| Full HD | Yes |
|---|
| 3D | No |
|---|
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|---|

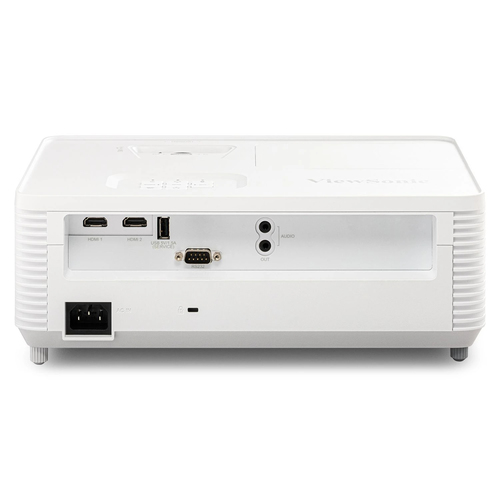

Ports & interfaces
| HDMI version | 1.4 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Headphone outputs | 1 |
|---|
| Microphone in | Yes |
|---|
| Serial interface type | RS-232 |
|---|
| HDMI ports quantity | 2 |
|---|
| DVI port | No |
|---|
| AC (power) in | Yes |
|---|
Network
| Smart TV | No |
|---|
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
Storage
| Card reader integrated | No |
|---|
Features
| Interactive | No |
|---|
| HDCP | Yes |
|---|
Multimedia
| Built-in speaker(s) | Yes |
|---|
| RMS rated power | 3 W |
|---|
| Number of built-in speakers | 1 |
|---|
Design
| Market positioning | Business |
|---|
| Product colour | White |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
Display
| Built-in display | No |
|---|
Power
| Power source | AC |
|---|
| Power consumption (typical) | 295 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Weight & dimensions
| Width | 309 mm |
|---|
| Depth | 234 mm |
|---|
| Height | 115 mm |
|---|
| Weight | 2.7 kg |
|---|
Packaging content
| Remote control included | Yes |
|---|
| Cables included | AC |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
