Overview

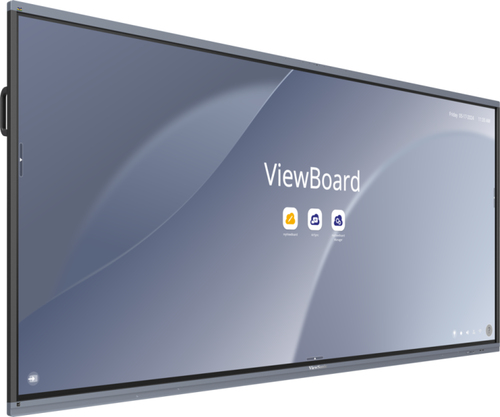

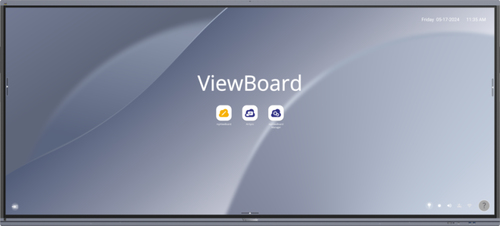

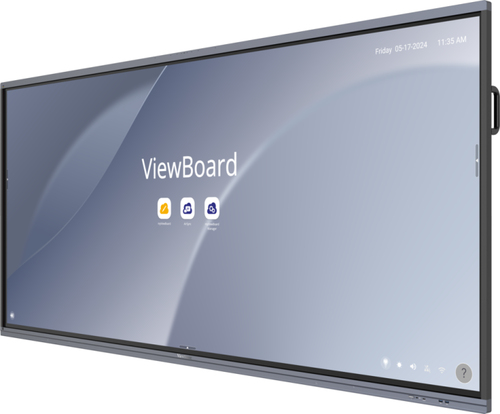

The ViewBoard IFP105UW delivers an expansive interactive experience with its 21:9 aspect ratio and stunning 5K resolution. The 105” display allows for multitasking with split-screen functionality, enhancing collaboration and productivity. With highly responsive 40-point touch capabilities, every input is registered naturally and intuitively. Enjoy seamless wireless screen casting and sharing through vCast. Designed for both in-person and hybrid collaboration, the ViewBoard IFP105UW is an ideal solution for meeting rooms, enabling seamless presentations, ideation, and decision-making.
Specifications
Display
| Display diagonal | 2.67 m (105") |
|---|
| Display brightness | 400 cd/m² |
|---|
| Display number of colours | 1.07 billion colours |
|---|
| Display resolution | 5120 x 2160 pixels |
|---|
| HD type | WUHD |
|---|
| Panel type | VA |
|---|
| LED backlight | Yes |
|---|
| LED backlighting type | Direct-LED |
|---|
| Native aspect ratio | 21:9 |
|---|
| Contrast ratio (typical) | 4000:1 |
|---|
| Contrast ratio (dynamic) | 5000:1 |
|---|
| Response time | 6.5 ms |
|---|
| Touchscreen | Yes |
|---|
| Touch technology | Multi-touch |
|---|
| Number of simultaneous touchpoints | 40 |
|---|
| Touch resolution | 32767 x 32767 pixels |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Working area | 2449.92 x 1033.56 mm |
|---|
| Low Blue Light technology | Yes |
|---|
| Hardness | 7H |
|---|
Computer system
| Operating system installed | Android |
|---|
| Operating system version | 13 |
|---|
| Built-in processor | Yes |
|---|
| Processor architecture | ARM Cortex A76 + ARM Cortex A55 |
|---|
| User memory | 128 GB |
|---|
| RAM capacity | 8 GB |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Number of built-in speakers | 2 |
|---|
| Speaker power | 16 W |
|---|
| Built-in subwoofer | Yes |
|---|
| Subwoofer RMS power | 15 W |
|---|
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C Touch ports quantity | 2 |
|---|
| USB 2.0 Type-A hub ports quantity | 1 |
|---|
| HDMI ports quantity | 5 |
|---|
| HDMI output ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Line-in | Yes |
|---|
| Line-out | Yes |
|---|
| RS-232 ports | 1 |
|---|
Ergonomics
| Product colour | Black |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 1000 x 400 mm |
|---|
| Wall mountable | Yes |
|---|
Power
| Power consumption (typical) | 176 W |
|---|
| Power consumption (off) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Weight & dimensions
| Width | 2507.2 mm |
|---|
| Depth | 103.2 mm |
|---|
| Height | 1130.1 mm |
|---|
| Weight | 91.4 kg |
|---|
Packaging data
| Package width | 2668 mm |
|---|
| Package depth | 280 mm |
|---|
| Package height | 1305 mm |
|---|
| Package weight | 116 kg |
|---|
| Quantity per pack | 1 pc(s) |
|---|
Packaging content
| Manual | Yes |
|---|
| Remote control included | Yes |
|---|
Logistics data
| Pallet gross width | 2.68 m |
|---|
| Pallet gross length | 114 cm |
|---|
| Pallet gross height | 143.5 cm |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
