Vertiv

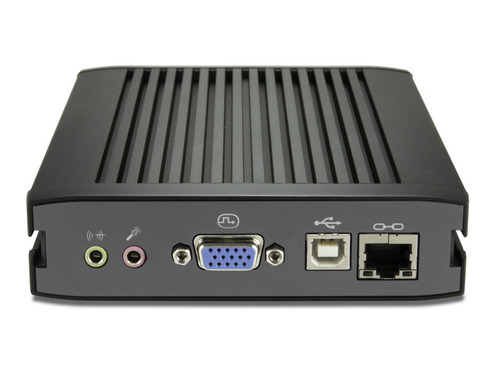

Vertiv Avocent Matrix MXT5120 VGA Transmitter
Part number MXT5120-VGA
MATRIX TRANSMITTER SINGLE VGA VIDEO
- Multi-User Access Avocent Matrix provides up to hundreds of users with non-blocked access to connected servers and equipment, allowing for multi-user access at any time.
- Scalable, Expandable Architecture Thousands of devices can be connected through cascading and expanding the system is easy to implement.
- Intuitive Administration Through the web interface or Matrix Manager software, a single management system allows you to manage devices, users, and peripherals. Advanced features also exist to establish macros, event notification, high availability, and external API access.
- High Performance Video, Audio, and USB Remotely access applications with a exceptional USB, audio, and resolution up to 1920 x 1200.
- Manufacturer
- Vertiv
- Part number
- MXT5120-VGA
- Condition
- New
- Category
- Accessories › Phone & Cellular Accessories
- 1GPA category
- Hardware
Specifications
| Keyboard port type | USB |
|---|---|
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum resolution | 1920 x 1200 pixels |
|---|---|
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black, Blue |
| Housing material | Metal |
| Cascadable | Yes |
| Certification | CE, FCC, UL |
| Built-in display | Yes |
|---|---|
| Display | LCD |
| Input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 121 mm |
|---|---|
| Depth | 157 mm |
| Height | 31 mm |
| Weight | 635 g |
| Quick installation guide | Yes |
|---|---|
| Rubber feet | Yes |
| Weight (imperial) | 0.635 kg (1.4 lbs) |
|---|
| Harmonized System (HS) code | 85176200 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
