Vertiv

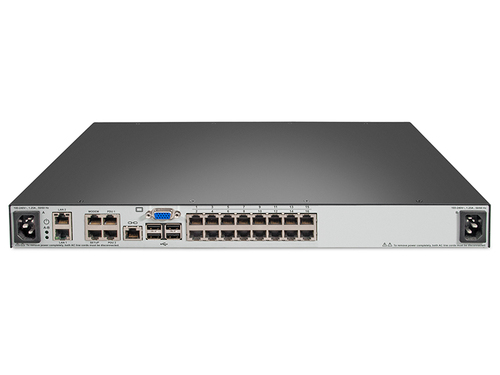

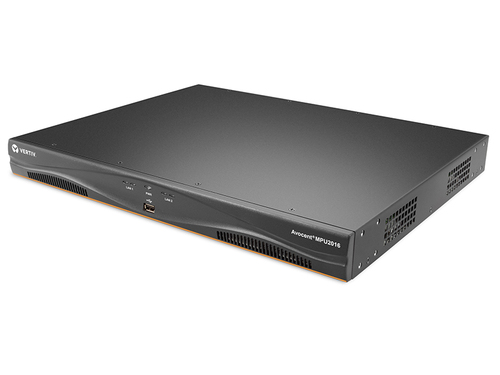

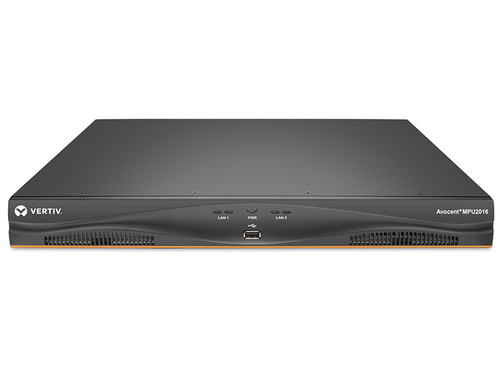

Vertiv Avocent MPU2016DAC-400 KVM switch Rack mounting Black

Part number MPU2016DAC-400

16PORT 2 DIGITAL KVM PATHS DUAL AC POWER SUPPLY 1 LOCAL U TAA

Significant reduction of cable volume.
Remote access to KVM, USB, and serial connections.
Serial adaptors support SSH connections and Cisco pinout to make connections to Cisco equipment quick and easy.
Virtual media enables remote USB connections and support for smartcard/CAC readers.
Local and remote browser interface for easy setup and use.

Overview

Improved remote management and staff efficiency

Make connections to Cisco equipment quick and easy

Improved physical security

Local and remote browser interface for easy setup and use

Centralized management for large deployments

Remote access to KVM, USB and serial connections

Serial adaptors support SSH connections and the Cisco® pinout

Virtual media enables remote USB connections and support for smartcard/CAC readers

Built-in Web interface

Managed with the Avocent DSView™ 4 management software

FIPS 140-2 compliance: Based on the FIPS 140-2 validated cryptographic module(s) (Certificate #1051)

Ports & interfaces
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D/HDMI/VGA
VGA (D-Sub) ports quantity	1
Console ports	RJ–45, USB A, VGA (D-Sub), HDMI
USB 2.0 Type-A hub ports quantity	4
Serial port type	RJ-45
Serial ports quantity	18

Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2

Performance
Maximum resolution	1920 x 1080 pixels

Design
Rack mounting	Yes
Product colour	Black

Power
Input voltage	100 - 240 V

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	-20 - 70%

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
