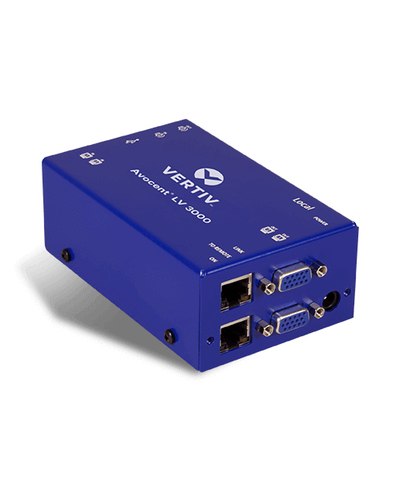

Vertiv Avocent LV3010P-001 KVM extender Transmitter & receiver
Part number LV3010P-001
LONGVIEW SINGLE VGA,USB,AUDIO
- Transmitter & receiver
- Wired Maximum transfer distance: 300 m
- Maximum analog resolution: 1920 x 1200 pixels
- Transmitter local keyboard/mouse port type: USB
- Receiver local video port type: VGA Receiver local keyboard/mouse port type: USB
- Power consumption (transmitter) (max): 12 W Power consumption (receiver) (max): 12 W
- Blue
- Manufacturer
- Vertiv
- Part number
- LV3010P-001
- Condition
- New
- Category
- Accessories › Phone & Cellular Accessories
- 1GPA category
- Hardware
Overview
Avocent LV 3010P KVM Extender
Avocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
The LV3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300 m (1000 ft) over a single or multiple CATx cables. The LV3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.
Specifications
| Type | Transmitter & receiver |
|---|---|
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
| Maximum analog resolution | 1920 x 1200 pixels |
| Product colour | Blue |
| Certification | CE, FCC class A, UL |
| Transmitter local video port | Yes |
|---|---|
| Transmitter local video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| Receiver local video port type | VGA |
|---|---|
| Receiver local keyboard/mouse port type | USB |
| AC input voltage | 100-240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 12 W |
| Power consumption (receiver) (max) | 12 W |
| Transmitter width | 16.2 cm |
|---|---|
| Transmitter depth | 7.5 cm |
| Transmitter height | 2.6 cm |
| Transmitter weight | 430 g |
| Receiver width | 12.2 cm |
| Receiver depth | 7.5 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 350 g |
| AC adapter included | Yes |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Maximum resolution | 1920 x 1200 pixels |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
