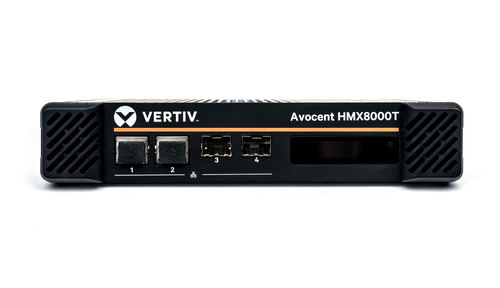

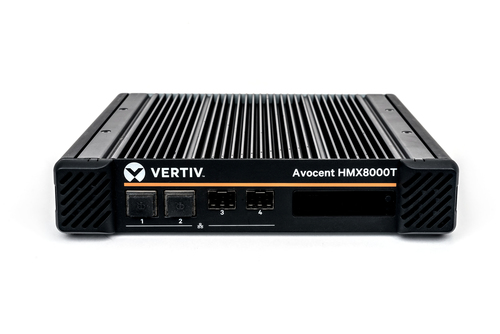

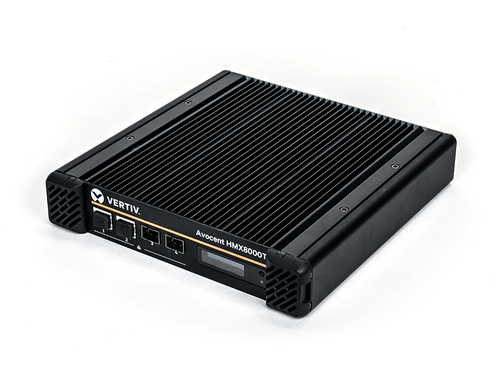

Vertiv Avocent HMX8000T KVM extender Transmitter

Part number HMX8000T-400

HMX8000T-400 - TRANSMITTER - GIGABIT ETHERNET - 10GBPS - 4K QUALITY: PIXEL-PERFE

4K QUALITY: Pixel-perfect with zero latency at 4K 60Hz over a single fiber connection
10 GB ETHERNET CAPABILITY: It can support fiber connections
REMOTE ACCESS: Ensure quality and security of critical devices when accessing them remotely
FAST SWITCHING: Quickly access critical devices with less than a second switching
BACKWARDS COMPATIBLE: Use with Vertiv Avocent HMX 5000/6000 switches without special modification

Manufacturer: Vertiv
Part number: HMX8000T-400
Condition: New
Category: Accessories › Phone & Cellular Accessories
1GPA category: Hardware

Overview

The Vertiv Avocent HMX8000T - IP KVM Transmitter (HMX8000T) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U transmitter enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user work station.

Specifications

Features
Type	Transmitter
Connectivity technology	Wired
Cable types supported	Fiber
Rack mounting	Yes
Maximum digital resolution	4096 x 2160 pixels
Supported resolutions	4K @ 60 Hz (4096 x 2160)
Product colour	Black
Material	Metal
Easy to install	Yes
Plug and Play	Yes

Transmitter
Transmitter video port type	DisplayPort
Number of displays supported	2
Transmitter local keyboard/mouse port type	USB

Ports & interfaces
USB port type	USB Type-B
USB 2.0 ports quantity	2
RJ-45 ports quantity	2
PC Audio in	Yes
PC Audio out	Yes
SFP/SFP+ slots quantity	2

Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
AC adapter output current	5 A
Power consumption (transmitter) (max)	20 W

Weight & dimensions
Transmitter width	21.5 cm
Transmitter depth	4.06 cm
Transmitter height	21 cm
Transmitter weight	1.81 kg

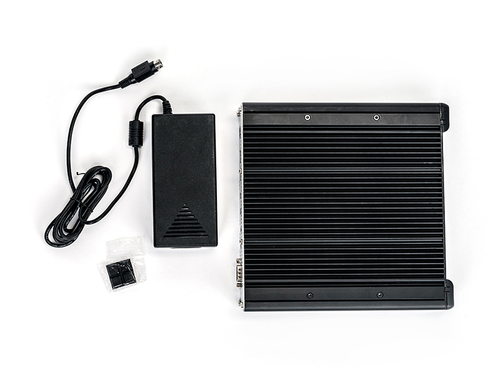

Packaging content
AC adapter included	Yes
Quick installation guide	Yes

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Other features
Firmware upgradeable	Yes
Compliance certificates	China Compulsory Certification (CCC), UL, Trade Agreements Act (TAA)

Logistics data
Harmonized System (HS) code	84733080
