Overview

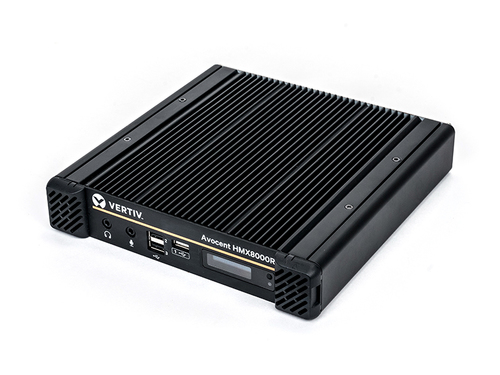

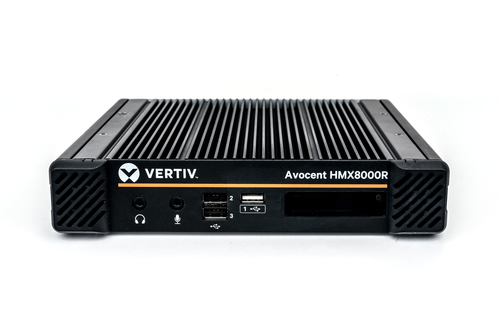

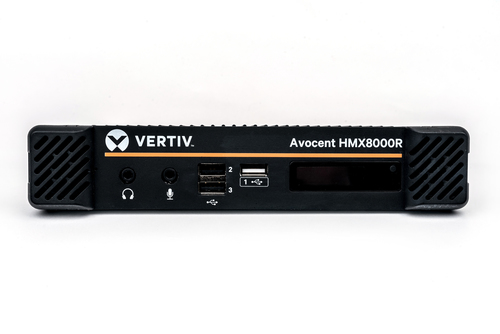

The Vertiv Avocent HMX8000R - IP KVM Receiver (HMX8000R) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. Dual head 4K can be achieved with additional fiber connection. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U receiver enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user workstation to maintain component integrity. It provides access to system computers via a standard IP infrastructure network, allowing users the ability to share computing resources. System control is managed from a single access point through confirmed verification tools. This KVM system is ideal for demanding applications such as media, control rooms and collaborative environments. It is used in broadcasting, post-production and many other industries where high resolution and zero latency are required.
Specifications
Features
| Type | Receiver |
|---|
| Connectivity technology | Wired |
|---|
| Cable types supported | Fiber |
|---|
| Rack mounting | Yes |
|---|
| Maximum digital resolution | 4096 x 2160 pixels |
|---|
| Supported resolutions | 4K @ 60 Hz (4096 x 2160) |
|---|
| Product colour | Black |
|---|
| Material | Metal |
|---|
| Easy to install | Yes |
|---|
| Plug and Play | Yes |
Transmitter
| Number of displays supported | 2 |
Receiver
| Receiver local video port type | DisplayPort |
|---|
| Receiver local keyboard/mouse port type | USB |
|---|
| Receiver local video ports quantity | 2 |

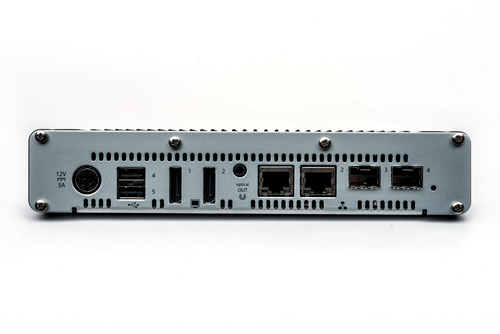

Ports & interfaces
| USB port type | USB Type-A |
|---|
| USB 2.0 ports quantity | 5 |
|---|
| RJ-45 ports quantity | 1 |
|---|
| PC Audio in | Yes |
|---|
| PC Audio out | Yes |
|---|
| SFP/SFP+ slots quantity | 2 |
Power
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| AC adapter output voltage | 12 V |
|---|
| AC adapter output current | 5 A |
|---|
| Power consumption (transmitter) (max) | 20 W |
Weight & dimensions
| Transmitter width | 21.5 cm |
|---|
| Transmitter depth | 4.06 cm |
|---|
| Transmitter height | 21 cm |
|---|
| Transmitter weight | 1.81 kg |

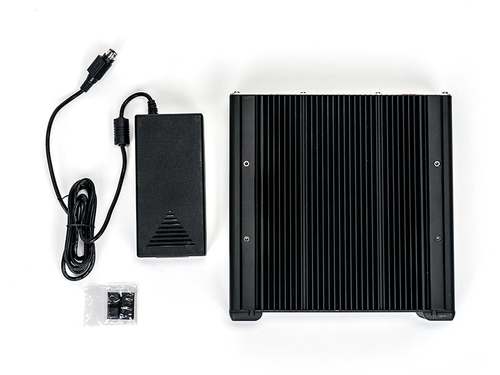

Packaging content
| AC adapter included | Yes |
|---|
| Quick installation guide | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Firmware upgradeable | Yes |
Logistics data
| Harmonized System (HS) code | 84733080 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
