Vertiv Avocent HMX6200T KVM switch Rack mounting Black
Part number HMX6200T-001
HMX TX DUAL DVI-D,QSXGA,USB,AUDIO,SFP
- Dual-Head DVI-D Interface - Supports resolutions to a maximum of 1920x1200(Dual-Head) or 2560x1600(Single-Head)
- Digital KVM extension with USB, audio and serial
- Extend over LAN or point-to-point over UTP
- Optional Fiber connectivity using SFP Modules
- Manufacturer
- Vertiv
- Part number
- HMX6200T-001
- Condition
- New
- Category
- Accessories › Phone & Cellular Accessories
- 1GPA category
- Hardware
Overview

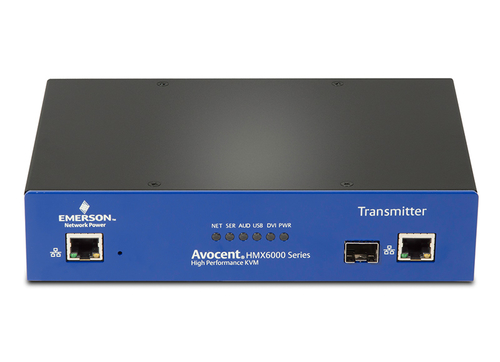

Avocent® HMX 6200 Digital High Performance KVM system Transmitter
The Avocent® HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).
Have the flexibility to scale a solution of unlimited size to connect any number of users to any number of computers allowing real-time cooperative sharing of computers and the multicasting of video to any destination.The Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Advanced Manager Solution. The Avocent HMX Advanced Manager Solution provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.
Specifications
| Keyboard port type | USB |
|---|---|
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HD type | Full HD |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, UL |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output voltage | 5 V |
| Power consumption (typical) | 20 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 201 mm |
|---|---|
| Depth | 152 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Cables included | AC, Audio (3.5mm), DVI, Serial, USB |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
